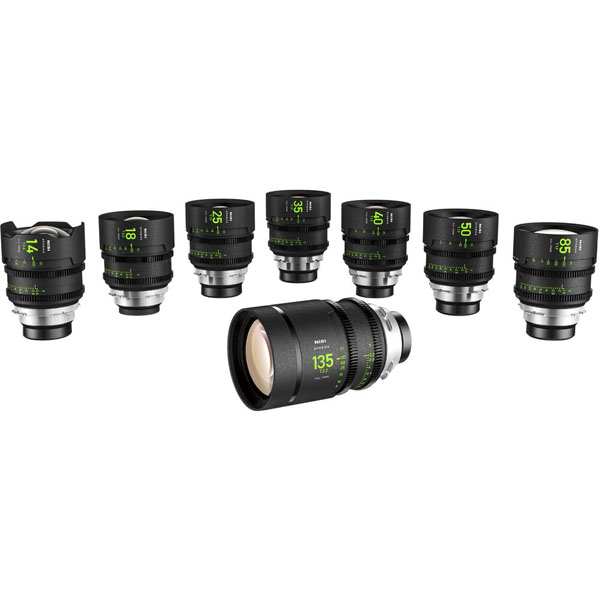

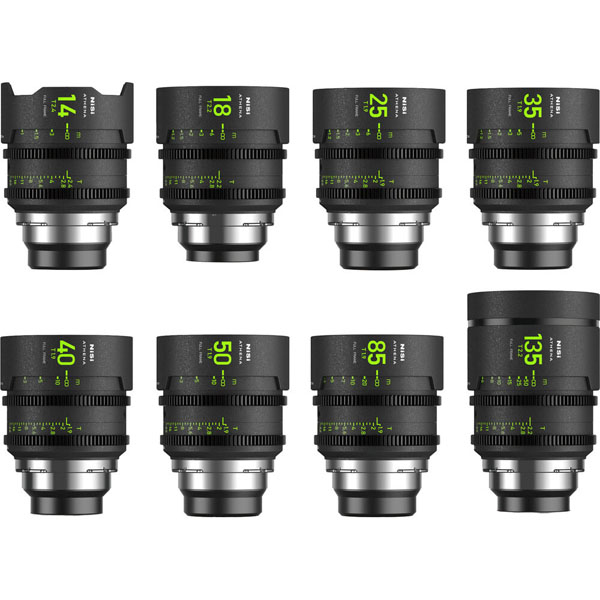

Nisi ATHENA Master Kit 8 Optiques (PL)
Présentation du Nisi Athena Master Kit 8 Optiques :
Le Nisi Athena Master Kit est un série d’objectifs cinéma qui couvre différentes focales, compatibles avec les caméras plein format. L’objectif de 14 mm offre une ouverture de T2,4, tandis que ceux de 18 et 135 mm s’ouvrent à T2,2 et les objectifs de 25, 35, 40, 50 et 85 mm à T1,9. Tous partagent un diamètre frontal de 80 mm, un cercle d’image de 46 mm et des bagues crantées de 0,8 MOD, assurant l’uniformité à travers les focales. Cela facilite l’utilisation d’un système de follow focus commun et réduit les ajustements lors du changement d’objectifs.
Cette version du Master Kit est n’est pas compatible avec les filtres Drop-In de Nisi. Pour intégrer cette fonctionnalité, privilégiez la série en monture E, RF ou L.
Une valise de transport capable d’accueillir jusqu’à 9 objectifs ATHENA est incluse dans le kit.
Points forts du Nisi Athena Master Kit :
- Une série polyvalente allant de 14 à 135 mm
- Plein format
- Ouverture T1.9/2.2/2.4
- Diamètre frontal de 80 mm
- Diaphragme à 10 lames
- Engrenages de mise au point et d’ouverture de 0,8 MOD
- Comprend une valise de transport pour 9 objectifs
NiSi ATHENA PRIME 14mm T2.4
| Focal Length |
14mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Maximum Aperture |
T2.4
|
| Minimum Aperture |
T22
|
| Diagonal Angle of View |
Full Frame: 113.9°
|
| Horizontal Angle of View |
Full Frame: 103.6°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 9.84" / 0.25 m
|
| Diaphragm Blades |
10
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
| Front Diameter |
80 mm
|
| Filter Thread |
No
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
300°
|
| Electronic Communication |
No
|
| Image Stabilization |
No
|
| Length |
3.4" / 85.3 mm
|
| Weight |
28.2 oz / 800 g
|
Packaging Info
| Package Weight |
2.41 lb
|
| Box Dimensions (LxWxH) |
7.2 x 5.4 x 5"
|

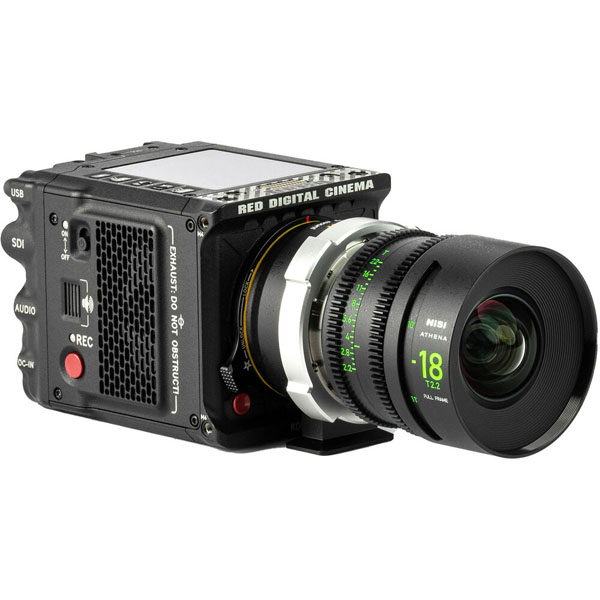

NiSi ATHENA PRIME 18mm T2.2
| Maximum Aperture |
T2.2
|
| Lens Mount |
ARRI PL
|
| Interchangeable Mount |
No
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Gear Standard |
Focus: 0.8 MOD / 32 Pitch
|
| Gear Rotation |
Focus 300°
|
| Electronic Communication |
No
|
| Diameter |
Front: 3.1" / 80 mm
|
NiSi ATHENA PRIME 25mm T1.9
| Focal Length |
25mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Maximum Aperture |
T1.9
|
| Minimum Aperture |
T22
|
| Diagonal Angle of View |
Full Frame: 82.1°
|
| Horizontal Angle of View |
Full Frame: 71.7°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 11.8" / 0.3 m
|
| Diaphragm Blades |
10
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
300°
|
| Electronic Communication |
No
|
| Image Stabilization |
No
|
| Length |
3.2" / 81.3 mm
|
| Weight |
28.2 oz / 800 g
|
Packaging Info
| Package Weight |
2.38 lb
|
| Box Dimensions (LxWxH) |
7.2 x 5.6 x 5"
|
NiSi ATHENA PRIME 35mm T1.9
| Focal Length |
35mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Maximum Aperture |
T1.9
|
| Minimum Aperture |
T22
|
| Diagonal Angle of View |
Full Frame: 64.3°
|
| Horizontal Angle of View |
Full Frame: 55.1°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 11.8" / 0.3 m
|
| Diaphragm Blades |
10
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
300°
|
| Electronic Communication |
No
|
| Image Stabilization |
No
|
| Length |
3.2" / 81.3 mm
|
| Weight |
28.2 oz / 800 g
|
Packaging Info
| Package Weight |
2.41 lb
|
| Box Dimensions (LxWxH) |
6.8 x 5.9 x 4.8"
|

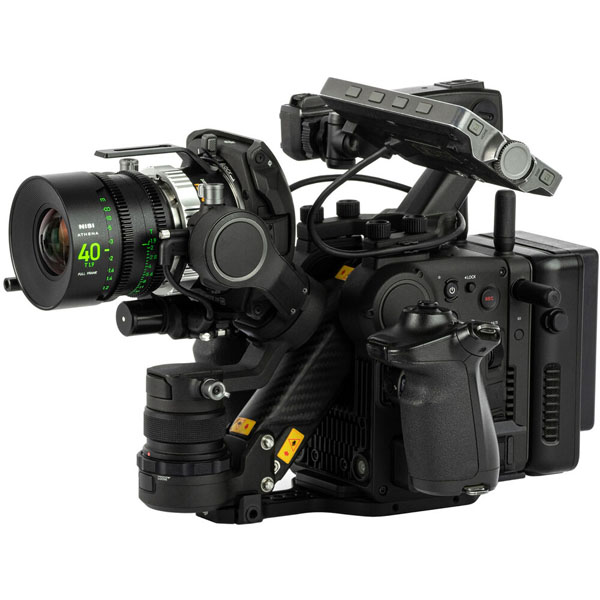

NiSi ATHENA PRIME 40mm T1.9
| Maximum Aperture |
T1.9
|
| Lens Mount |
ARRI PL
|
| Interchangeable Mount |
No
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Gear Standard |
Focus: 0.8 MOD / 32 Pitch
|
| Gear Rotation |
Focus 300°
|
| Electronic Communication |
No
|
| Diameter |
Front: 3.1" / 80 mm
|
NiSi ATHENA PRIME 50mm T1.9
| Focal Length |
50mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Maximum Aperture |
T1.9
|
| Minimum Aperture |
T22
|
| Diagonal Angle of View |
Full Frame: 47.5°
|
| Horizontal Angle of View |
Full Frame: 40.1°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 19.7" / 0.5 m
|
| Diaphragm Blades |
10
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
300°
|
| Electronic Communication |
No
|
| Image Stabilization |
No
|
| Length |
3.2" / 81.3 mm
|
| Weight |
28.2 oz / 800 g
|
Packaging Info
| Package Weight |
2.385 lb
|
| Box Dimensions (LxWxH) |
6.9 x 6.3 x 5"
|
NiSi ATHENA PRIME 85mm T1.9
| Focal Length |
85mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Maximum Aperture |
T1.9
|
| Minimum Aperture |
T22
|
| Diagonal Angle of View |
Full Frame: 28.6°
|
| Horizontal Angle of View |
Full Frame: 24°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 31.5" / 0.8 m
|
| Diaphragm Blades |
10
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
300°
|
| Electronic Communication |
No
|
| Image Stabilization |
No
|
| Length |
3.2" / 81.3 mm
|
| Weight |
28.2 oz / 800 g
|
Packaging Info
| Package Weight |
2.41 lb
|
| Box Dimensions (LxWxH) |
7.5 x 5 x 4.9"
|
NiSi ATHENA PRIME 135mm T2.2
| Maximum Aperture |
T2.2
|
| Lens Mount |
ARRI PL
|
| Interchangeable Mount |
No
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.0 mm
|
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Gear Standard |
Focus: 0.8 MOD / 32 Pitch
|
| Gear Rotation |
Focus 300°
|
| Electronic Communication |
No
|
| Diameter |
3.1" / 80 mm
|
1x NiSi ATHENA PRIME 14mm T2.4
1x NiSi ATHENA PRIME 18mm T2.2
1x NiSi ATHENA PRIME 25mm T1.9
1x NiSi ATHENA PRIME 35mm T1.9
1x NiSi ATHENA PRIME 40mm T1.9
1x NiSi ATHENA PRIME 50mm T1.9
1x NiSi ATHENA PRIME 85mm T1.9
1x NiSi ATHENA PRIME 135mm T2.2
1x Mallette NiSi pour le jeu de 9 objectifs ATHENA Cinema
