Neumann KH 750 DSP – Caisson
Neumann KH 750 DSP est un caisson de basses actif à DSP, haut-parleur 10″, 48,4 litres, 256 W, 105 dB SPL, 18–300 Hz. Le DSP compact KH 750 est le choix idéal pour les petites salles et les petits moniteurs de studio. Il dispose d’un gestionnaire de basses unique et flexible (2.0/0.1), d’entrées analogiques et numériques, de quatre modes de routage et de commandes acoustiques adaptables à utiliser dans de nombreuses configurations différentes.
En plus de ses propriétés acoustiques exceptionnelles, Neumann KH 750 DSP basé sur DSP offre des fonctions pour les moniteurs Neumann connectés à ses sorties concernant l’interaction avec les outils suivants :
– Alignement automatique du moniteur – Correction automatique de la pièce des systèmes stéréo à l’aide du microphone de mesure Neumann MA 1 (logiciel pour Mac/PC)
– Neumann.Control – Application iPad® gratuite pour la configuration, le fonctionnement et la correction de pièce des systèmes stéréo via un alignement guidé et/ou manuel
| THD+N: analog, digital | < -100 dB; < -90 dB |
| Free field frequency response ±6 dB | 16 … 800 Hz |
| Free field frequency response ±3 dB | 18 … 750 Hz |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) NPS |
| Sine wave output with a THD < 0.5 % at 1 m in half space | 95 dB SPL (>70 Hz) |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 105.0 dB SPL |

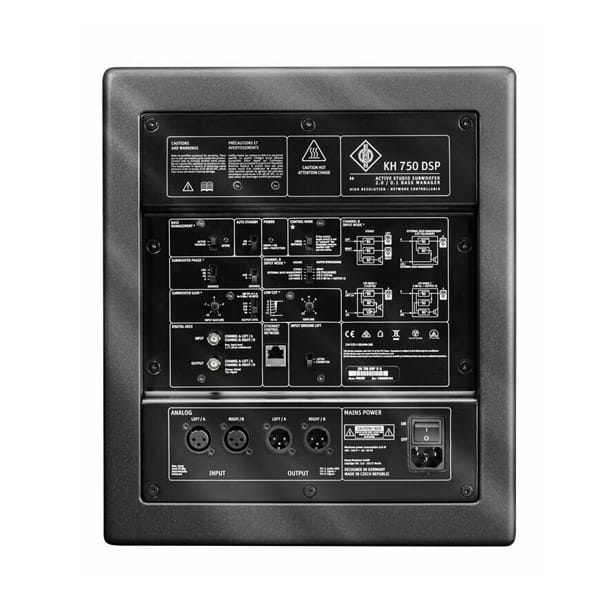

| Analog input(s) | 2 x XLR: analog electronically balanced |
| Analog input impedance | >13k Ohms |
| Max. input level | < +24 dBu |
| Common mode rejection ratio (CMRR) | > 56 dB @ 15 kHz |
| Crosstalk (1 kHz), level matching | < -90 dB; ±0.1 dB |
| Volume control | via Neumann.Control software |
| Volume control range; resolution | 0 … -∞ dB; 0.1 dB |
| Analog dynamic range; THD+N | 119 dB(A); <0.003% (-90 dB) |
| Signal routing modes | Right; External Bass Management; 2 x LFE |
| Analog output(s) | 2 x XLR; analog electronically balanced |
| Input gain control (sensitivity) | +2 ... -12 dB |
| Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
| Digital input(s) | BNC (75 Ω): AES3; S/P-DIF |
| Digital output(s) | BNC (75 Ω): AES3 |
| Digital converter: resolution; design | 16 … 24-bit DAC; Δ∑ |
| Digital converter: sampling rate | 22.05; 24; 32; 44.1; 48; 64; 88.2; 96; 176.4; 192 kHz |
| Dynamic range A-D-A | >120 dB(A) |
| Dynamic range D-A | >123 dB(A) |
| Digital sensitivity | -18 dBFS = 100 dB SPL at 1 m |
| Latency | 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase) |
| Delay: User adjustable delay range | 0 ... 100 ms and 2 x 0 ... 20.8 ms |
| Delay: Resolution: time; distance | 0.1 ms; 3.44 cm (1 3/8”) |
| Delay: Max. frames Audio-video synchronisation (lip sync) | 2.5 (40 ms) frames; 3 (33 ms) frames |
| Delay: Time-of-flight maximum distance | 2 x 7.16 m (23' 5") |
| Controller design | Digital; active |
| Crossover frequency | 80 Hz |
| Crossover slope | 24 dB/oct; 4th order |
| Phase | 0; 45; 90; 135 und 0/180 deg |
| Equalization: via Neumann.Control software | 8 x full parametric IIR + low / high shelf global balance |
| FIR phase correction | For connected analog loudspeakers: Linear phase (170 Hz ... 16 kHz; +/- 45°) |
| Protection circuitry | Driver (thermo limiter); Electronics (temperature limiter); Amplifier (peak limiter, temperature limiter, temperature protection and overcurrent protection); Power supply (temperature limiter and overcurrent protection) |
| Infrasonic filter: frequency; slope | 17.5 Hz; 12 dB/oct. |
| Remote control | Neumann.Control software via an RJ45 connector carrying standard IP data |
| Display: On; Normal Operation | Green LED |
| Display: Identification | Amber LED |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Red LED |
| Display: Bass Management on | Green LED |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 256 W |
| Mains Power Supply: input voltage; frequency | 100-240V; 50/60 Hz |
| Power consumption (230 V / 100 V): Standby | <300 mW |
| Power consumption (230 V / 100 V): Idle | 18 W |
| Power consumption (230 V / 100 V): Full output | 410 W |
| In-rush current (Peak) | 30 A @230 VAC |
| Standby | Disabled; 90 mins (default); user defined in software |
| Cabinet material | Wood cabinet, aluminum electronics panel |
| Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) / black (RAL 9005) |
| Operating conditions | +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing |
| Transport/storage conditions | -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing |

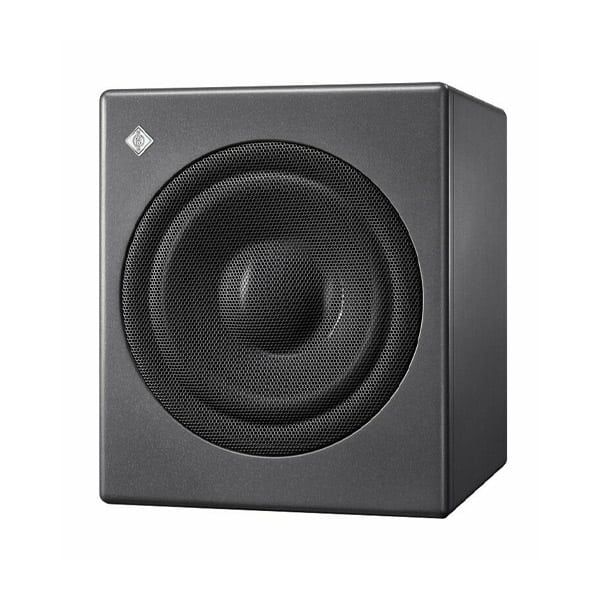

| Woofer | 265 mm (10") with protecting black metal grille |
| Product dimensions (height x width x depth) | 383 x 330 x 383 mm (15 1/8" x 13" x 15 1/8") |
| External net volume | 48.4 liters |
| Product weight | 19.5 kg (43 lbs) |
Comprend (1)KH 750 DSP D G et (3) câbles d'alimentation (EU, R-U, USA)
