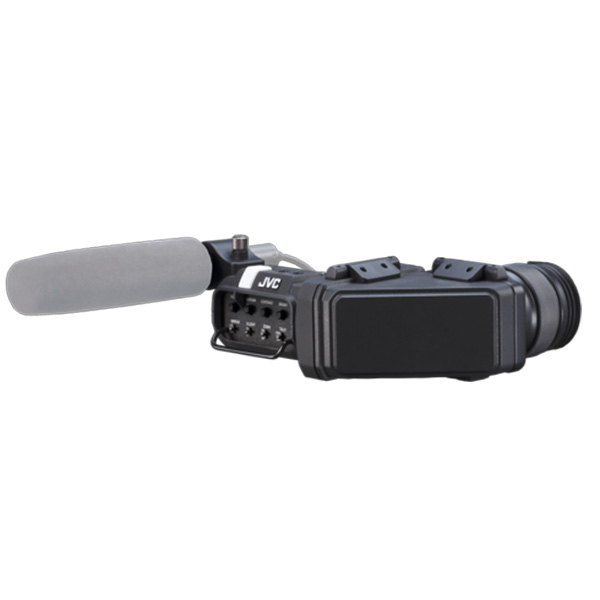

JVC VF-E900G – viseur O-Led
Le JVC VF-E900G est un viseur électronique OLED de qualité supérieure pour la caméra GY-HC900RCHE.
Points forts du viseur VF-E900G :
- Viseur électronique OLED 3,26 pouces
- Ratio aspect 16: 9
- 180 cd /m²
- Fonctionnalités directes : Peaking, Chroma, Tally, Zebra, Mirror, B.Light, User1, User2
- Tally Light / Red / Green
- 16M RVB
- Dioptrie
- Fonctions de rotation d’image
- Support pour micro
- Microphone non inclus
| Panel Specifications | |
| Panel size (diagonal in inch) | 3.26 |
| Panel Aspect Ratio | 16 to 9 |
| Panel Type OLED | Yes |
| Brightness in cd/m² | 180 |
| Items for EVF Monitors (MON) | |
| EVF TYPE (Direct-View via Lens/Eye or Studio Viewfinder) | Eye Electronic Viewfinder (lens and mirror system) |
| Eye correction compensation | Yes |
| Left/Right or Center use | Shift Mounting Left/right by distance |
| View angle adjustable | Yes |
| Mount Type | Special Camera Holder for GY-HC900 series |
| Power via Camera | Yes |
| Tally Light (EVF) | Yes |
| Tally on/off switch | Yes |
| Supported Signal Formats | |
| Other Formats | 1080i/59.94, 50 , 1080p/29.97, 25, 24, 23.98, 720p /59.94, 50 |
| Dedicate Functions | |
| R/G/B/Mono | Yes, Via Camera |
| Zebra stripes display | Yes |
| Peaking focus assist | Yes |
| Tally Multi-Color | Yes, Red/Green |
| Function Keys | 2 User |
| Picture Flip modes | Yes |
| Direct Brightness/Contrast/Color control | Yes |
| Power and Enviroment Spec´s | |
| Power DC | Yes, 12V |
| DC Connector Type: | Special Interface |
| Power consumption | 0,5A |
| Operation Temperature in Celsius | 0C to 40C |
| Operation Humidity:(Non-Condensing) | 30% to 80% |
| Storage Temperature in Celsius | -20C to 50C |
| Mechanical Informations | |
| Dimensions W x H x D in mm | W:265mm / H:92mm / D:233mm |
| Weight in Kg: | 0.75Kg |
| Include Package | |
| Instruction Doc: | Yes |
| General Editing Note | |
| General Note | Simulated pictures.The values for weight and dimensions are approximate .E.&O.E. Design and specifications subject to change without notice. |
