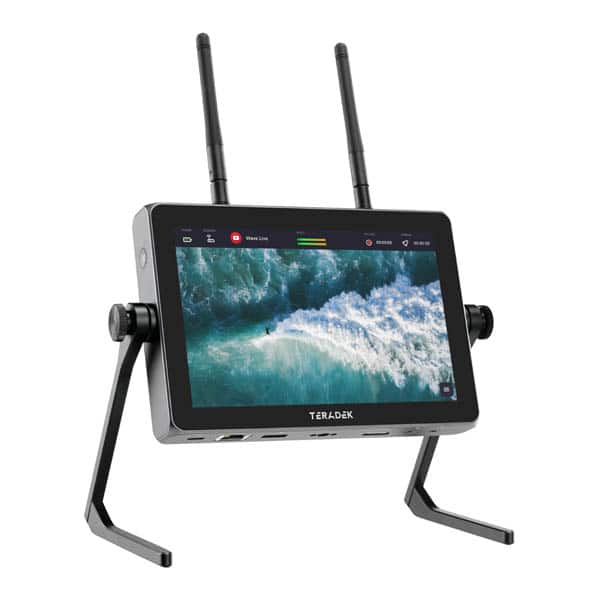

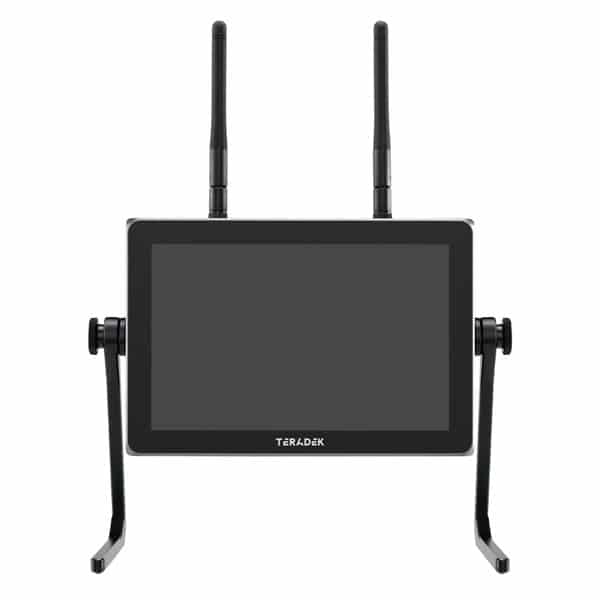

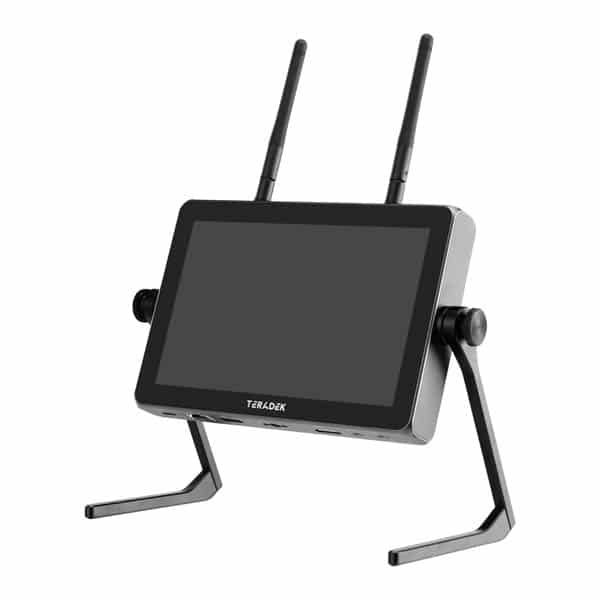

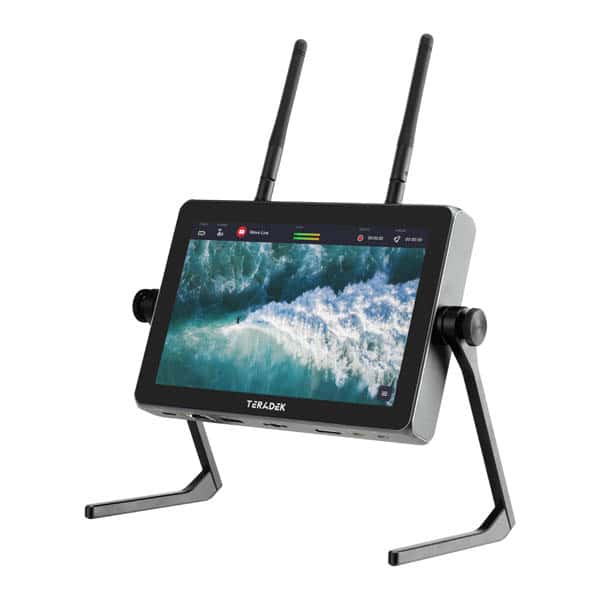

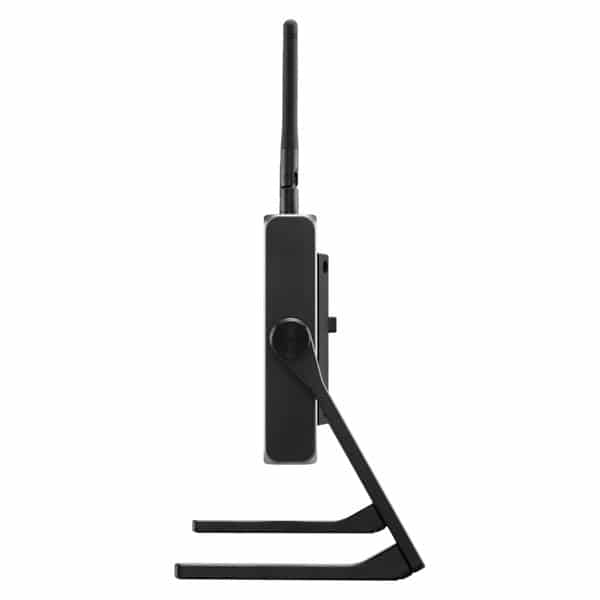

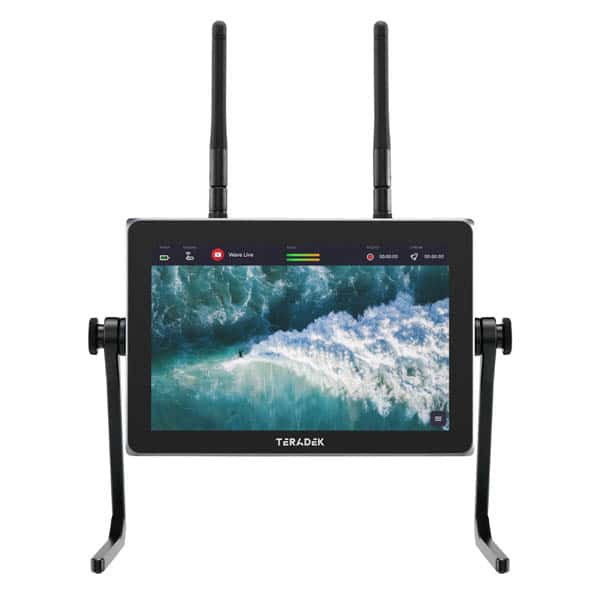

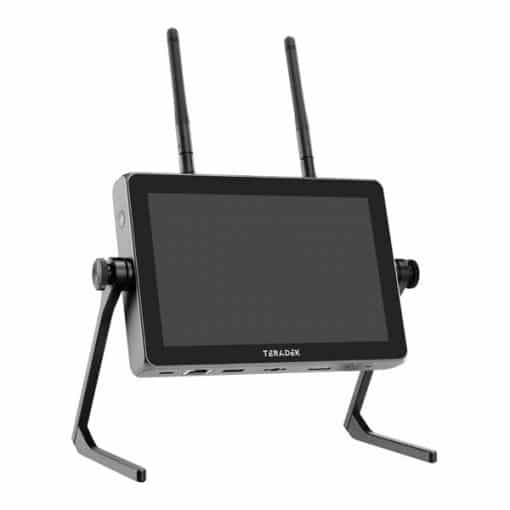

Teradek Wave – Moniteur 7”

VIDEO

Video Inputs

1x HDMI Type A receptacle

Supported Input Resolutions

1080p 23.98/24/25/29.97/30/50/59.94/60

1080i 50/59.94/60

720p 50/59.94/60

Video Compression

H.264 (AVC), baseline/main profile

Supported Video Bitrate

250 kbps to 15 Mbps

Supported Resolutions

1080p

720p

480p

360p

240p

Supported Frame Rates

10, 14, 20, 25, 30, 50, 60

NETWORK

Ethernet

10/100/1000 BASE-T

Wireless

WiFi: Dual Band MIMO 802.11 ac/ax/a/b/g/n Access Point (AP), or Client Mode

USB

USB for external modem support

WiFi Channel Selection

Auto with 3 modes: 2.4 or 5 GHz, Auto (2.4 GHz only), Auto (5 GHz only)

Manual: Configurable to specific channels

PROTOCOL SUPPORT

Network Protocols

TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

RTMP(S), Airmix

Bonding

Requires a Sharelink subscription.

Platform Integration

Facebook, YouTube Live, Vimeo, Wowza

Cloud Services

Sharelink

AUDIO

Audio Input

Embedded HDMI audio input, 2-Channel 3.5mm analog audio input

Audio Output

3.5mm TRRS headphone output, adjustable volume

Audio Compression

AAC-LC

Supported Audio Bitrate Details

HD: 256 kbps

High: 192kpbs

Medium: 128kpbs

Low: 96 kpbs

Mobile: 48kpbs

PHYSICAL ATTRIBUTES

Dimensions

7” W x 4.78” H x 1” D (178 x 122 x 26mm)

Weight

24oz [680g]

Construction

Machined aluminum and ABS Plastic

Mountability

1/4” 20 mounting holes with stand adapter

PANEL

Type

IPS LCD 7”

Nits

1000 Daylight viewable

INTERFACES

Configuration Interface

OSD with touchscreen, Feature-rich Web UI for configuration and control

Switches

On/Off and reset switch

Recording/Storage

Full SD/SDHC (class 6 and above) formatted FAT32,

USB formatted FAT 32

Mobile App

Wave App for iOS or Android devices

USB Interface Functionality

2x powered USB 2.0 host ports

POWER

Power Input

USB-C connector, power adapter and USB-C cable included

Battery

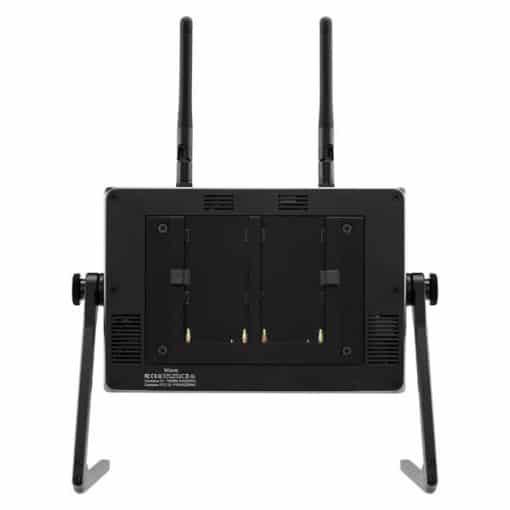

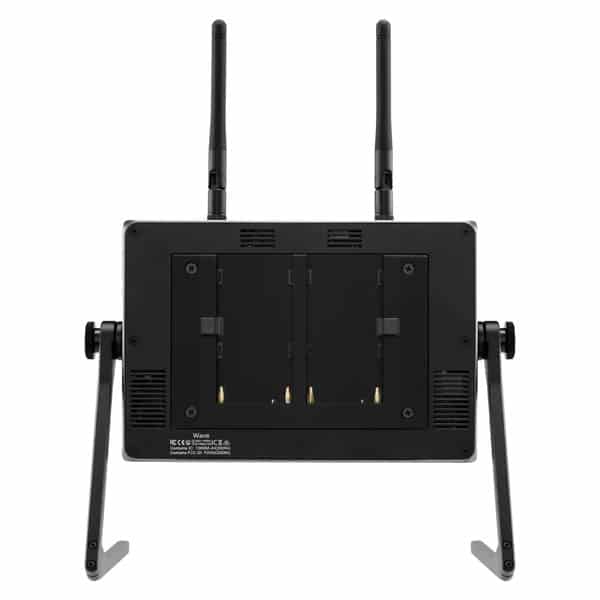

Plates for external Sony L-series

Nominal Power Consumption

Up to 12W (with optional internal modem: up to 14W)
