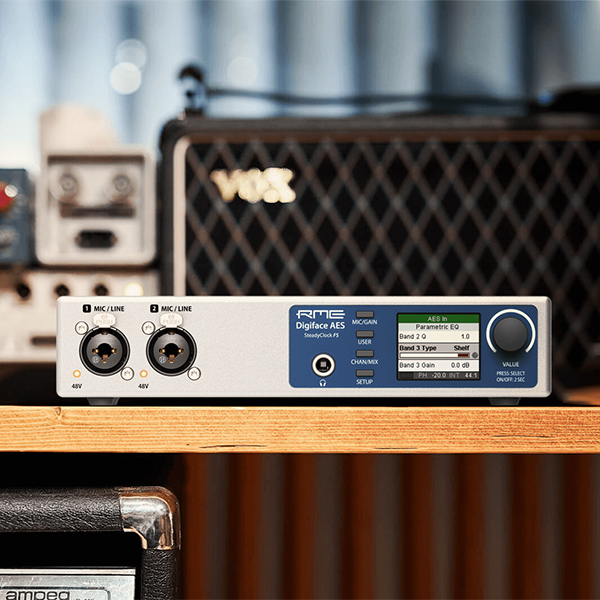

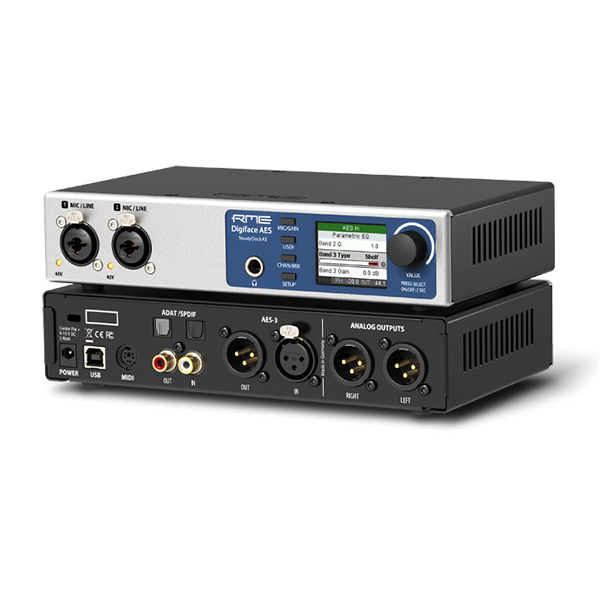

Présentation de la RME Digiface AES
La RME Digiface AES est une Interface numérique USB 192 kHz avec E/S analogique AES/SPDIF/ADAT. C’est une interface professionnelle USB 2.0 de 14 entrées et 16 sorties, alimentée par le bus, avec 2 canaux d’entrée analogiques universels Mic/Line et 4 canaux de sortie analogiques (2 XLR, 1 TRS) complétant sa section d’E/S numérique. Avec un excellent ensemble de connectivité numérique, SteadyClock FS, un fonctionnement entièrement autonome et un égaliseur paramétrique intégré, la Digiface AES se présente comme la solution tout-en-un parfaite pour l’enregistrement et la lecture de sources numériques et analogiques, ainsi que pour une lecture/monitoring flexible via TotalMix FX.
Pour les entrées principales, RME utilise les préamplis micro/ligne éprouvés en configuration combo XLR de la Babyface Pro FS. Deux préamplis contrôlés numériquement fournissent une alimentation fantôme 48V commutable individuellement.
impédance.
RME DIGIFACE AES Specs
| Channels of I/O |
Analog:
2 Input / 4 Output Digital: 12 Inputs / 12 Output |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
2 Preamps
|

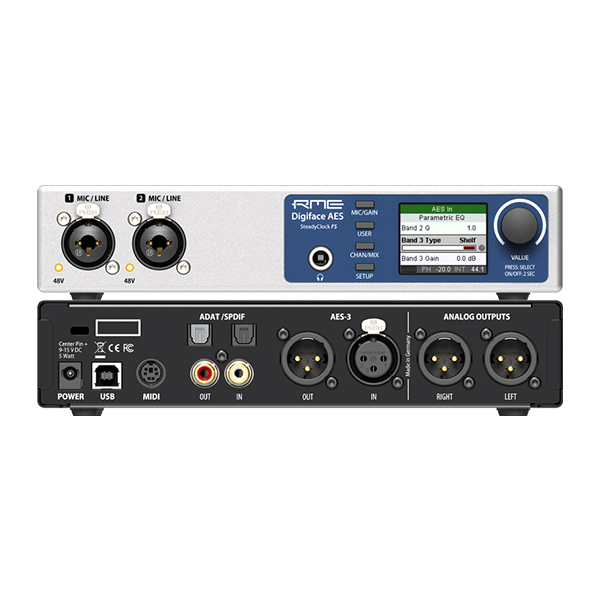

| Analog Audio I/O |
2 x Combo XLR-1/4″ 3-Pin Balanced Mic/Line Input
2 x XLR 3-Pin Balanced Line Output 1 x 1/4″ TRS Unbalanced Headphone Output |

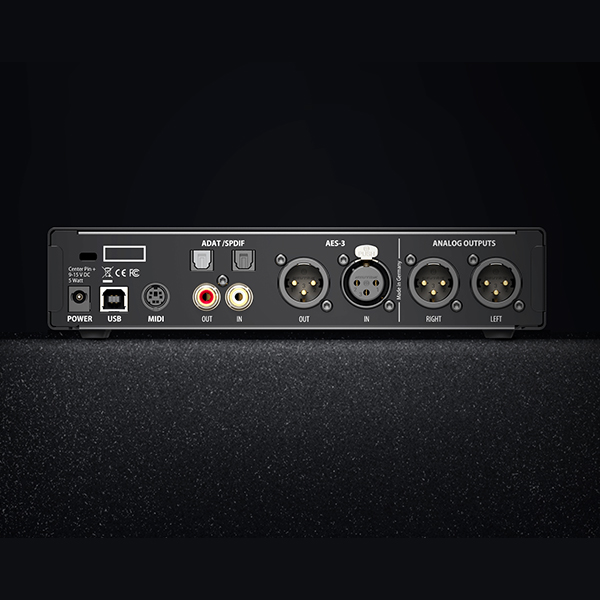

| Digital Audio I/O |
1 x XLR 3-Pin AES3 Input
1 x XLR 3-Pin AES3 Output 1 x TOSLINK Optical ADAT Input 1 x TOSLINK Optical ADAT Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection |
1 x USB-B
|
| OS Compatibility |
macOS 11 or Later
Windows 7 or Later *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
USB Bus Power
|
| Channels of I/O |
Analog:
2 Input / 4 Output Digital: 12 Inputs / 12 Output |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
2 Preamps
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
1 x Knob
|
| Expansion Slots |
No
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
Up to 75 dB (in 1 dB Steps)
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
2 x Combo XLR-1/4″ 3-Pin Balanced Mic/Line Input
2 x XLR 3-Pin Balanced Line Output 1 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
1 x XLR 3-Pin AES3 Input
1 x XLR 3-Pin AES3 Output 1 x TOSLINK Optical ADAT Input 1 x TOSLINK Optical ADAT Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection |
1 x USB-B
|
| Host Connection Protocol |
USB 2.0
|
| USB (Non-Host) |
No
|
| Sync I/O |
1 x XLR 3-Pin AES Input
1 x XLR 3-Pin AES Output |
| Network I/O |
No
|
| MIDI I/O |
1 x DIN 5-Pin Input (on Breakout Cable)
|
Performance
| Frequency Response |
XLR Mic, Line Inputs:
16 Hz to 20 kHz (at 44.1 kHz) 7 Hz to 45 kHz (at 96 kHz) 5 Hz to 88 kHz (at 192 kHz) XLR Line Outputs: 0 Hz to 20.7 kHz (at 44.1 kHz) 0 Hz to 45 kHz (at 96 kHz) 0 Hz to 90 kHz (at 192 kHz) |
| Maximum Input Level |
Combo XLR-1/4″ Mic/Line Inputs:
+8 dBu (Gain: 0 dB) 1/4″ Line Inputs: 24 dBu (Gain: 0 dB) |
| Maximum Output Level |
XLR Line Outputs:
19 dBu 1/4″ Headphone Outputs: 13 dBu at 0 dBFS |
| Headphone Output Power |
1/4″:
160 mW per Channel into 32 Ohms (0.1% THD) |
| Impedance |
Combo XLR-1/4″ Mic/Line Inputs:
2 Kilohms (Balanced) 1 Kilohm (Unbalanced) 1/4″ Line Inputs: 12 Kilohm (Balanced) XLR Line Outputs: 300 Ohms (Balanced) 1/4″ Headphone Outputs: 5 Ohms |
| Dynamic Range |
XLR Analog Outputs:
123 dBA (+19 dBu) XLR Analog Outputs: 116.5 dBA (+13 dBu) XLR Analog Outputs: 116.5 dBA (+4 dBu) 1/4″ Analog/Headphone Inputs: 122 dBA (0 dBFS) |
| SNR |
XLR Mic/Line Inputs:
113 dB RMS (Unweighted) XLR Line Outputs: 19 dBu (120 dB (AES17), 123 dBA) 13 dBu (114 dB (AES17), 116.5 dBA) 4 dBu (114 dB (AES17), 116.5 dBA) 1/4″ Headphone Outputs: 120 dB ((AES17), 122 dBA) 114 dB ((AES17), 116.5 dBA) Digital AD/DA Converters: 139 dB (Sample-Rate Converter, 142 dBA) |
| THD |
XLR Line/Mic Inputs:
< -110 dB / < 0.0003% XLR Line Outputs: < 110 dB / < 0.0003% |
| THD+N |
XLR Mic/Line Inputs:
< -106 dB / < 0.0005% XLR Line Outputs: -110 dB / < 0.0003% 1/4″ Headphone Outputs: -108 dB / 0.0004% |
| EIN |
Combo XLR-1/4″ Mic/Line Inputs:
-129 dBu A-Weighted (60 dB Gain, 150 Ohm, 20 Hz to 20 kHz) |
Digital Audio
| Sample Rates |
Up to 200 kHz
|
| Sample Rate Conversion |
On ADAT I/O (28 to 200 kHz)
|
| Bit Depths |
Up to 24-Bit
|
| Latency |
2.27 ms at 44.1 kHz
1.14 ms at 96 kHz 0.57 ms at 192 kHz |
| Sync Sources |
ADAT, AES3, Internal, S/PDIF
|
| Clocking |
AES:
Lock Range: 27 to 200 kHz (2.4 kHz to )Jitter Suppression: > 50 dB (2.4 kHz) S/PDIF: Lock Range: 31.5 to 50 kHz |
Audio Storage & Playback
| Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
macOS 11 or Later
Windows 7 or Later *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Included Software |
No
|
| Included Plug-Ins |
Special Processing:
Ozone 10 Elements Scuffham Amps SGEAR Brainworx BX Masterdesk Dynamics: Brainworx Opto Compressor Tuning: Auto-Tune Unlimited Virtual Instruments: True Sound Studio RME Drum Sample Pack |
| Mobile App Compatible |
Yes: iOS Only
App Name: TotalMix Remote Functionality: Remote Control *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility |
No
|
| Required Hardware |
USB 2.0 Port
|
| Internet Connection |
Required for Registration, Software/Driver Download
|
Power
| Power Requirements |
USB Bus Power
|
| Power Consumption |
3 W
|
Physical
| Operating Humidity |
75% (Non-Condensing)
|
| Operating Temperature |
41 to 122°F / 5 to 50°C
|
| Dimensions |
8.5 x 5.1 x 1.7″ / 21.5 x 13 x 4.4 cm
|
| Weight |
31.0 oz / 880.0 g
|
Packaging Info
| Package Weight |
4.325 lb
|
| Box Dimensions (LxWxH) |
15 x 8.4 x 3.3″
|
