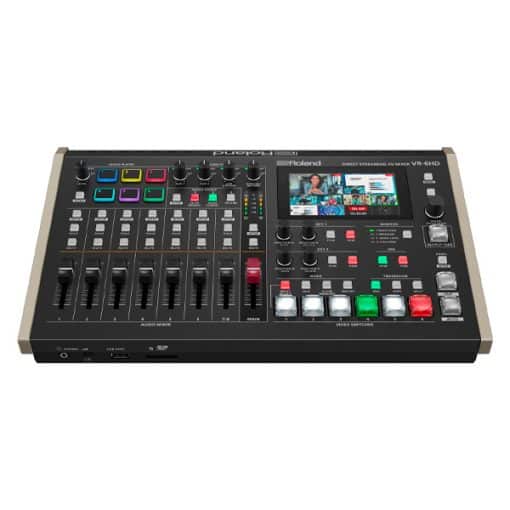

Roland VR-6HD – Mélangeur HD HDMI
Le prix initial était : 3 332,50 €.2 249,00 €Le prix actuel est : 2 249,00 €. HT 2 698,80 € TTC
Sur commande
Présentation Roland VR-6HD
Roland VR-6HD est un mélangeur 6 canaux HD HDMI avec sortie AV USB3 Streaming. Il constitue la solution tout-en-un ultime pour les diffusions en streaming. Proposant des fonctions évoluées et une connectique polyvalente dans un format facilement transportable, le VR-6HD est idéal pour les réunions d’entreprise, les présentations commerciales et autres applications vidéo professionnelles. Il intègre montage vidéo, mixage audio et encodage de streaming LAN/USB. Grâce à l’interface intuitive, aux outils d’automation, aux séquences macro et au contrôle de caméras PTZ, un opérateur unique peut facilement et rapidement gérer toutes les tâches de production depuis cet appareil. Le mélangeur VR-6HD est compatible HDMI et vous pouvez facilement utiliser six sources HDMI en Full HD, avec diverses fréquences de trame et des espaces de couleur différents, de type broadcast ou cinéma. Les Scalers intégrés avec EDID et HDCP éliminent les problèmes de connexion aux différentes sources : ordinateurs, tablettes, smartphones, consoles de jeu et anciens appareils en 4:3. Le VR-6HD propose une qualité audio haut de gamme grâce à ses 28 pistes simultanées et ses fameuses capacités de mixage Roland. Un EQ complet et un traitement des dynamiques sont disponibles sur chaque piste, avec un ensemble de presets permettant d’obtenir instantanément des résultats de qualité professionnelle.
Points forts VR-6HD
- Un mélangeur/table de mixage hybride ultra compact avec encodeurs de streaming direct
- Des encodeurs de streaming intégrés pour transmettre deux flux de diffusion simultanés jusqu’à 1080p/60 FPS
- Enregistrez directement vos flux de diffusion sur carte SDXC pour les archiver, les modifier ou les diffuser ultérieurement
- Six entrées 1080p HDMI avec convertisseurs de fréquence de trame et Scalers en temps réelt
- Un générateur d’effets vidéo à cinq couches
- Un total de cinq sorties : trois HDMI, streaming en USB-C et une sortie de streaming direct
- Une table de mixage numérique audio à 28 pistes avec effets et traitements évolués
- Améliorez vos diffusions avec des effets sonores, des images fixes et des sources vidéo issues d’une carte SDXC
- Le contrôle de six caméras PTZ de nombreuses marques et multiples protocoles
- Un écran tactile de 4,3 pouces avec menu graphique
- Compatible avec tally filaire ou sans fil
- Video
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8-bit
- Number of Video Channels
- 6 channels
- Video Input Formats
- VIDEO IN 1--6
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 Frame Rate = 59.94 Hz, 60 Hz
*2 Frame Rate = 50 Hz - Video Output Formats
- VIDEO OUT 1--3:
720/59.94p *1, *4, 720/60p *1, *5, 720/50p *1, *8, 1080/59.94i *2, *4, 1080/60i *2, *5, 1080/50i *2, *8, 1080/59.94p *3, *4, 1080/60p *3, *5, 1080/29.97p *3, *6, 1080/30p *3, *7, 1080/50p *3, *8, 1080/25p *3, *9
1080/23.98p *3, *10, 1080/24p *3, *11
*1 Output Format = 720p
*2 Output Format = 1080i
*3 Output Format = 1080p
*4 Frame Rate = 59.94 Hz
*5 Frame Rate = 60 Hz
*6 Frame Rate = 29.97 Hz
*7 Frame Rate = 30 Hz
*8 Frame Rate = 50 Hz
*9 Frame Rate = 25 Hz
*10 Frame Rate = 23.98 Hz
*11 Frame Rate = 24 HzUSB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p､640 x 480/25p *6
1080/23.98p, 720/23.98p､640 x 480/23.98p *7
1080/24p, 720/24p､640 x 480/24p *8
* Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate(USB Out) = 59.94 Hz
*2 Frame Rate(USB Out) = 60 Hz
*3 Frame Rate(USB Out) = 29.97 Hz
*4 Frame Rate(USB Out) = 30 Hz
*5 Frame Rate(USB Out) = 50 Hz
*6 Frame Rate(USB Out) = 25 Hz
*7 Frame Rate(USB Out) = 23.98 Hz
*8 Frame Rate(USB Out) = 24 Hz - Stream and Record formats
- 720/59.94p *1, *3, 720/60p *1, *4, 720/29.97p *1, *5, 720/30p *1, *6, 720/50p *1, *7, 720/25p *1, *8, 1080/59.94p *2, *3, 1080/60p *2, *4, 1080/29.97p *2, *5, 1080/30p *2, *6, 1080/50p *2, *7, 1080/25p *2, *8, 1080/23.98p *2, *9, 1080/24p *2, *10
*1 Output Format = 720p
*2 Output Format = 1080p
*3 Frame Rate (Stream/Record) = 59.94 Hz
*4 Frame Rate (Stream/Record) = 60 Hz
*5 Frame Rate (Stream/Record) = 29.97 Hz
*6 Frame Rate (Stream/Record) = 30 Hz
*7 Frame Rate (Stream/Record) = 50 Hz
*8 Frame Rate (Stream/Record) = 25 Hz
*9 Frame Rate (Stream/Record) = 23.98 Hz
*10 Frame Rate (Stream/Record) = 24 HzFile Format: MP4
Codec:
H.264, target bitrate up to 20,000 kbps
AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
File Format: WAV
Codec:
Linear PCM, 16 bits, 48 kHz, stereo
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously. - Video Player
- File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080/60p
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously. - Still Image:
- Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the SD Card and USB flash drive.
* PNG alpha channel supported. - Video Effects
- Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay - Audio
- Audio Processing
- Sample rate: 24 bits, 48 kHz
- Number of Audio Channels
- 28 channels
- Audio Formats
- USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch
VIDEO IN: Linear PCM, 24 bits, 48 kHz, 2 ch
VIDEO OUT: Linear PCM, 24 bits, 48 kHz, 8 ch - Audio Player
- File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 16 tracks in the internal memory. - Audio Effects
- Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
Others: Output fade, Test tone output - Common Section
- Recording Media
- SDHC/SDXC card (sold separately)
USB Memory (sold separately)
* SDXC card is required for video recording. - Other Functions
- Scene Memory (32 types)
Macro Control (100 types)
Sequencer Control (1000 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 6 units)
External Rec Control - Connectors
- Video Input Connectors
- VIDEO IN 1--6: HDMI type A x 6
* HDCP Supported
* Multi-format Supported - Video Output Connectors
- VIDEO OUT 1--3: HDMI type A x 3
* HDCP SupportedUSB STREAM: USB Type-C (TM)
- Audio Input Connectors
- Analog:
AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 7/L, 8/R: RCA phono typeDigital:
USB STREAM: USB Type-C (TM)
Bluetooth
VIDEO IN 1--6: HDMI type A x 6 - Audio Output Connectors
- Analog:
AUDIO OUT 1/L, 2/R: XLR type
AUDIO OUT 3/L, 4/R: RCA phono type
PHONES: Stereo miniature phone typeDigital:
USB STREAM: USB Type-C (TM)
VIDEO OUT 1--3: HDMI type A x 3 - Other Connectors
- USB HOST: USB A type (for USB flash drive)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-TX (for Live Streaming and Remote Control) - Audio Input/Output Characteristics
- Input Level
- AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu)
AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu) - Input Impedance
- AUDIO IN 1--6: 8.4 k ohms
AUDIO IN 7/L, 8/R: 10 k ohms - Output Level
- AUDIO OUT 1/L, 2/R (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT 3/L, 4/R (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms) - Output Impedance
- AUDIO OUT 1/L, 2/R (XLR): 600 ohms
AUDIO OUT 3/L, 4/R (RCA): 1 k ohm
PHONES: 33 ohms - Others
- Bluetooth
- Ver 5.0
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) - Display
- Graphic Type, 4.3", Wide QVGA (480 x 272 dots), backlite LCD (Color/Touch screen)
- Power Supply
- AC Adaptor
- Current Draw
- 2.3 A
- Power Consumption
- 55 W
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 370 (W) x 242 (D) x 100 (H) mm
14-5/8 (W) x 9-9/16 (D) x 3-15/16 (H) inches - Weight (excluding AC adaptor)
- 3.4 kg
7 lbs 8 oz - Accessories
- Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord - Options (sold separately)
- Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
