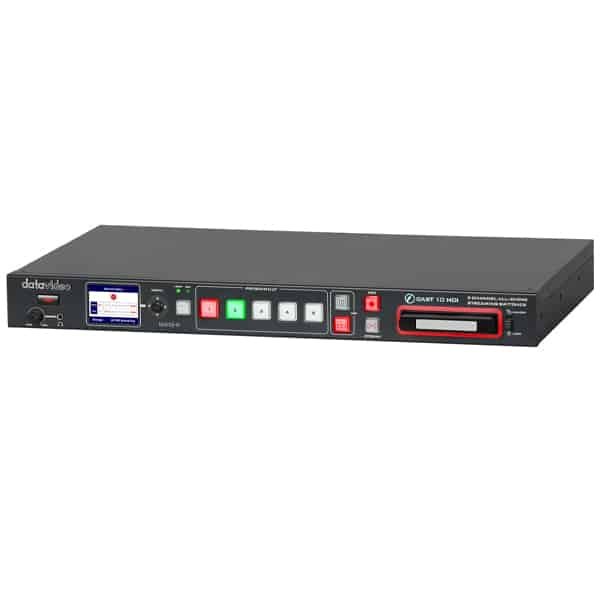

Datavideo iCast-10NDI – Mélangeur

Model Number : iCAST 10NDI

Video Standard : HD & SD

Video Format

Input:
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i59.94, 576i50

Output:
1080p60/59.94/50→1080p60/59.94/50
1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
1080i60/59.94/50→1080p30/29.97/25
720p60/59.94/50→720p60/59.94/50
480i59.94, 576i50→480p29.97, 576p25
(not supporting interlace)

Input Routable / Crosspoint : N/A

Video Input

3G/HD/SD-SDI x1 (BNC 75 ohm)
HDMI 1.4 x4
(Channel 1 as SDI/HDMI selectable)
USB 3.0 x1

Mix HD & SD Source : Yes

Computer Graphic Interface : 4 via HDMI

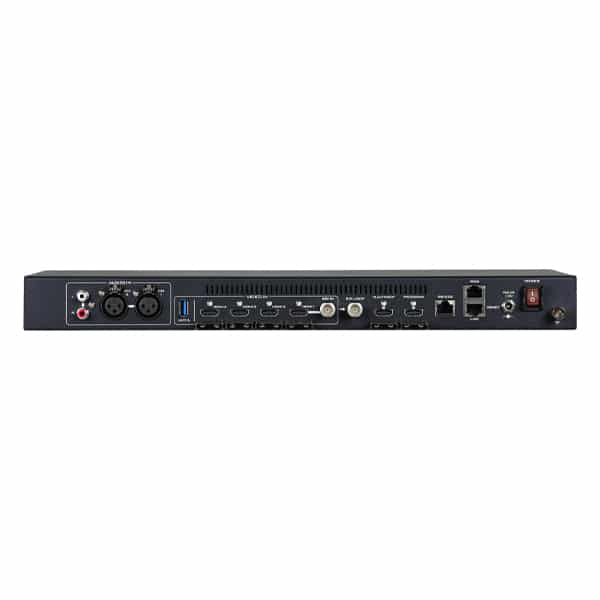

Video Output :

3G/HD/SD-SDI loop-through x1
HDMI 1.4 x1 (PGM)
HDMI 1.4 x1 (Multiview)
RJ-45 female x2 (10/100/1000M Ethernet) (LAN & WAN)

Down-converted Output : 1080p output

Built-in Multi-view Monitoring Out : HDMI x1

Analogue Audio Input :

XLR Balanced audio x2
RCA Unbalanced audio x 1 pair
SDI embedded audio
HDMI embedded audio
IP Audio (RTSP AAC-ADTS, PCM)
(External and embedded audio mixable)

Analogue Audio Output :  3.5mm x1 (headphone, PGM audio monitoring)

Audio Delay Calibration : Each channel delay time: 0-3000ms

Chromakey : N/A

Title Creator : Web GUI

USK : N/A

DSK : N/A

Picture in Picture : Yes (PGM)

Logo Insertion : Yes

Still Store : N/A

Effects : Cut

Transition Preview : N/A

Sync / Reference In/Out : N/A

Tally Output : N/A

PC Remote Control :

Web UI for system configuration and control
Serial Port Control: RS-232 (RJ-45)

Camera Control : N/A

Built-in Audio Mixer : Yes

Storage : SATA (6Gb/s)

Recording File System : FAT, NTFS, exFAT

Recording File Format : MP4

Video Encode : H.264

Audio Encode :

AAC-LC
Sample rate: 48KHz, 16bit
AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K

Streaming Protocol :

l DHCP client
l TS over UDP (unicast & multicast)
l RTSP over HTTP/TCP/UDP
l RTMP (Publish)/RTMPS
l HLS
l SRT Caller and Listener
l Web RTC (encode/decode)
l NDI | Hx

Firmware Update : Web UI (network)

Special Features :

Vertical video: crop or rotate
Vertical video Multiview

Chassis : 1RU rack-mount mainframe

Dimension (LxWxH) : 440 x 284 x 44mm

Weight = 2.9 kg

Power : DC 12V 24W

Operating Temp. Range : 0~40 °C

1 x iCast 10NDI main unit
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable
