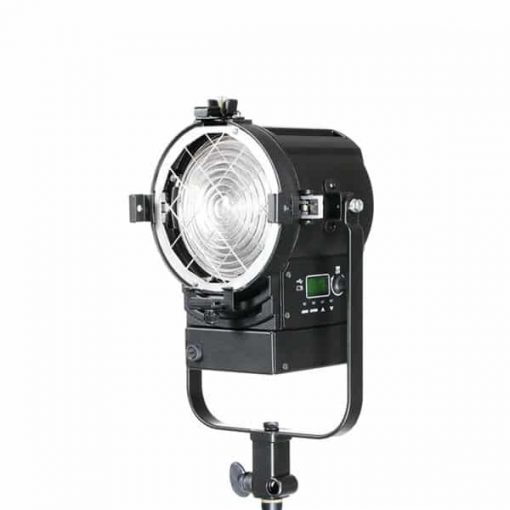

Litepanels Studio X2 (Tungsten, 60W) – Projecteur LED (Pole Operated)
Présentation du Litepanels Studio X2 (Tungsten, 60W, Pole Operated)
Le Litepanels Studio X2 (Tungsten, 60W) est un projecteur LED conçu par les professionnels de l’éclairage Quartzcolor. Il fournit une lumière blanche brillante haute performance, directionnelle avec un contrôle précis du faisceau à la LED COB Tugsten de 60W. Il bénéficie d’un niveau de gradation de 0% à 100% et sans scintillement. Le Studio X2 (Tungsten, 60W) dispose d’un objectif de 5″ dans un châssis compact pratique avec une plage d’angle de faisceau de 10° à 48°. La sortie du luminaire est similaire à celle d’un Fresnel traditionnel en tungstène de 300 W. La gestion thermique avancée garantit plus de 50 000 heures de durée de vie du moteur LED, tandis que les tests de rodage et d’étalonnage individuels garantissent la qualité et la cohérence.
Points forts du Studio X2 Tungsten
- Projecteur LED Fresnel Tungsten 60W
- Lumière blanche pure, brillante et constante
- Gradation de 0% à 100%
- DMX, RDM et contrôle local
- Gestion thermique avancée
| - •LED engine: Bi-Color COB •Lens: Fresnel 130mm / 5" Ø, low expansion borosilicate •Beam angle: 10° - 49° •Correlated Color Temperature: Variable 2,700K to 6,500K •Daylight (5,600K) lux @16ft/5m, Spot 10°: 828 •Daylight (5,600K) lux @16ft/5m, Flood 49°: 142 •Tungsten (3,200K) lux @16ft/5m, Spot 10°: 731 •Tungsten (3,200K) lux @16ft/5m, Flood 49°: 126 •CRI: 97 •TLCI: 97 Operational Data •Focus adjustment: Wire focus mechanism on Teflon bushing •Dimming control: PWM with 3 frequency presets, 0-100% continuously adjustable •Local control: Single dial (dimming and CCT) and keypad controller with backlit LCD display •Control connections: 5-Pin XLR in and through, Mini-USB •DMX control: Dimming and CCT, 8-bit and 16-bit •RDM control: DMX setup, hour counter, temperature •Fan: High efficiency convection, super silent fan with 3 speed presets •Software [Mini-USB]: Fixture status, firmware upgrade through PC •Ambient operating temperature: 0° - 40°C / 32°-104°F •Estimated LED lifetime: 50,000 hrs Mechanical Data •Mounting: Pole operated yoke, Jr Pin [28 mm / 1 1/8"] •Weight: 5.0kg / 11lb •Tilt angle: +/- 90° •Barndoor diameter: 168mm / 6.6” •Safety mesh: Stainless steel 168mm / 6.6” Electrical •Nominal power draw: 60W maximum •Power supply: Integrated, universal •Mains input: 80 – 260 Vac, 50 – 60 Hz, autosensing •Power connection: powerCON TRUE 1 in •IP rating: IP20 |
| Studio X2 Daylight 60W LED Fresnel, pole operated yoke includes: •LCD graphic display and on-board control panel • 5-pin RDM-DMX in connector •pole operated yoke with Jr Pin [28 mm / 1 1/8"] •PowerCON in connector •built-in universal power supply •4-leaf rotating barndoor Ø 6.6” (168mm) •10ft (3m) EU powerCON True 1 power cable |
