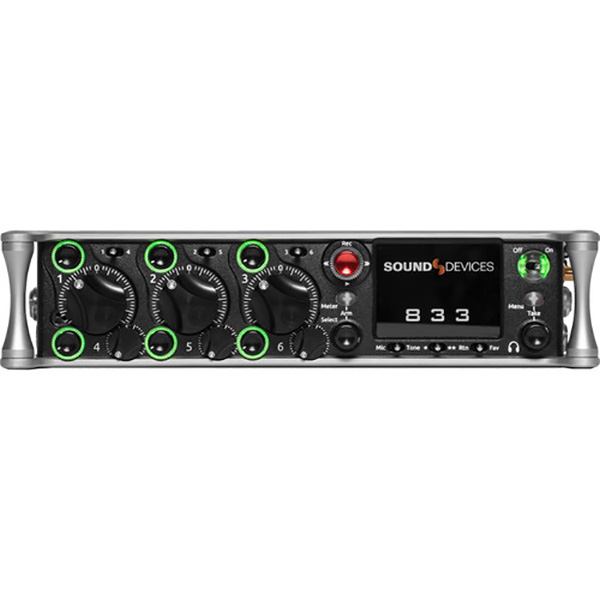

Sound Devices 833 8 canaux / 12 pistes – Enregistreur Audio

Référence : SD833

Ajouter à la wishlist
Sound Devices 833 8 canaux / 12 pistes - Enregistreur Audio

Le prix initial était : 6 000,00 €.Le prix actuel est : 5 900,00 €. HT

7 080,00 € TTC

Sur commande
Vous avez trouvé ce produit moins cher quelque part ? Dites-le-nous.
Devis
  • General
    • Freq. Response : 10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz)
    • THD + Noise : 0.005% max (1 kHz, 22 Hz-22 kHz BW, trim @20, fader @ 0, -10 dBu in)
    • Equivalent Input Noise (A-weighting, 76 dB gain, 150 ohm source impedance) : -131 dBV (-129 dBu) max
    • Processing engine
      • Highly extensible, full FPGA-based audio processing, 3 FPGAs
      • Six-way ARM multiprocessor system
      • 64-bit audio processing precision
  • Inputs
      • Mic/Line inputs 6 total, all fully featured; 3 on full-size XLR, 3 on TA3
      • Mic-level inputs: (XLR, TA3): Class-A, discrete differential long-tail pair, 4k ohm input impedance
      • Line-level inputs: (XLR, TA3,): active-balanced, 4k ohm input impedance
      • 48V phantom: full 10mA to all 6 inputs simultaneously
      • AES3 or AES42 available on XLR input 1
      • AES42: +10 V, 250 mA available, mode-1, auto-ASRC
      • Aux (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
      • Com Rtn (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
      • External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
    • Maximum Input Level
      • Mic: +8 dBu (2.0 Vrms)
      • Line: +28 dBu (19.5 Vrms)
      • Rtn A, B, C: +18 dBu (6.2 Vrms)
      • Com Rtn 1, 2: +24 dBu (12.3 Vrms)
      • External Slate Mic: +12 dBu (3.2 Vrms)
    • High-Pass Filters : Adjustable 10 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital.
    • Limiters
      • Available at all channels, buses, headphones, for all sample rates
      • Analog first stage, all subsequent stages digital
      • Attack time: 1 ms
      • Release time: adjustable, 50 ms to 1000 ms
      • Threshold: adjustable, -2 dBFS to -12 dBFS
      • Selectable ratio: inf:1, 20:1, 18:1, 16:1, 14:1, 12:1, 10:1
    • Delay
      • Channel Adjustable 0-50 ms
      • Output Adjustable 0-500 ms
    • Maximum Gain
      • Trim stage (mic input): 76 dB
      • Trim stage (line input): 50 dB
      • Fader stage: 16 dB
      • Bus stage: 16 dB
      • Headphone stage: 20 dB
      • Mic-to-Line: 108 dB
      • Mic-to-Headphone: 112 dB
  • Outputs
    •
      • XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
      • TA3 (X1/X2) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
      • 3.5mm (X3/X4): unbalanced, stereo, 1.8k ohms
    • Headphone Outputs
      • ¼", 3.5 mm
      • TA5 (along with mic input pins) for single connection to headset + mic
      • High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
      • Compatible with headphones of any impedance
    • Maximum Output Level (all into 10k load)
      • Line:
        • +20 dBu (7.8 Vrms)
        • "-10": +6 dBu (1.5 Vrms)
      • Mic: -20 dBu (0.078 Vrms)
      • X3/X4 Out: +6 dBu (1.5 Vrms)
      • Headphone outputs (¼", TA-5): +14 dBu (4.0 Vrms)
  • A/D converters
    • 32-bit, 120 dB, A-weighted dynamic range typical
    • Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
    • Digital Outputs : AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 110 ohm, 2 V p-p, AES and S/PDIF compatible
  • Recording
    • Internal 256 GB SSD
    • Two removable SD Cards
    • Simultaneous recording to internal SSD and the two SD cards
    • exFAT formatting
    • 12 tracks (8 iso channels, 4 buses)
    • Broadcast WAV monophonic and polyphonic file format
    • 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB
  • Automixing
    • Dugan Automixing up to 8 channels on left and right mix bus
  • USB
    • USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
    • USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
  • Timecode and Sync
    • Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.
    • Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
    • Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
    • Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)
    • Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
    • Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity
    • Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
  • Remote Control
    • USB MIDI Control - 3rd party fader controllers
    • SD-Remote Android app
    • USB Keyboard
    • External Timecode Record Trigger
  • LCD
    • 320x240, Transflective, excellent sunlight visibility
    • Larger touchscreen display available via USB-connected SD-Remote app
  • Power
    • External: 10-18 V input on locking TA4 connectors, pin-4 = (+), pin-1 = (-)
    • Dual rear-mount Sony-style L-mount batteries with chargers
    • Idle Current Draw: 875 mA @ 12 V (10.5 W)
    • Intelligent power-down of unused mic preamps and other internal circuits
  • Environmental
    • Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
    • Storage: -40° C to 85° C
  • Dimensions (H x W x D) : 5.1 cm x 22 cm x 17 cm; (2.0 in. x 8.7 in. x 6. in)
  • Weight : 2.75 lbs (unpackaged, without batteries) 1.25 kg (unpackaged, without batteries)
