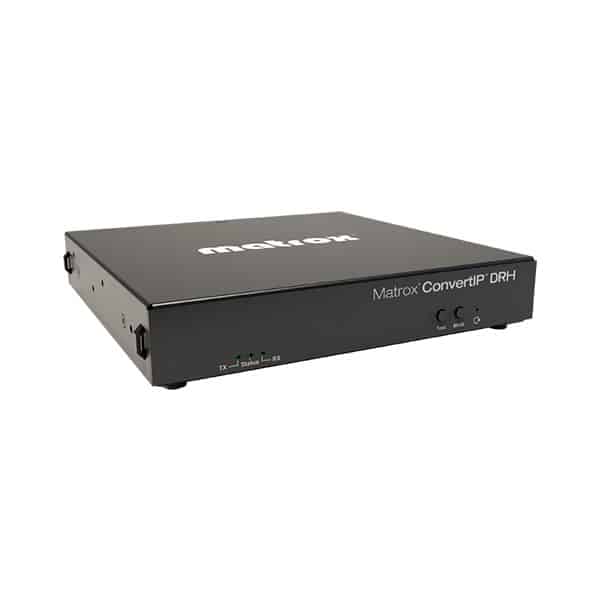

Matrox ConvertIP DRH – Convertisseur IP
1 855,38 € HT 2 226,46 € TTC
Sur commande
Le Matrox ConvertIP DRH est un convertisseur IP dual-channel RJ45 HDMI-to-IP transmitter/receiver.
Il est est un émetteur/récepteur ST 2110 et IPMX compact et autonome. Doté d’E/S HDMI et de trois ports RJ45, il est conçu pour les workflows AV 1G et est optimal pour une expérience de latence ultra-faible. L’appareil peut fournir une alimentation via Ethernet via sa connexion RJ45, ou il peut être alimenté via une unité d’alimentation en option. Les deux peuvent être utilisés simultanément pour fournir une redondance d’alimentation.
Les émetteurs/récepteurs Matrox ConvertIP assurent le routage, la surveillance et la distribution des signaux IPMX, HDBaseT™ et SMPTE ST 2110 entre SDI ou HDMI. Avec une multitude d’entrées/sorties intégrées dans chaque boîtier compact, les utilisateurs peuvent facilement gérer une large gamme de médias en utilisant les réseaux existants, activer les workflow basés sur IP et passer à l’infrastructure IP.
|
Product |
|
|
Part Number |
CIP-DRH |
|
Form Factor |
Standalone appliance Rack-mountable: 1U, 1/2 rack (horizontal) |
|
Connectivity |
|
|
Video Input |
1x HDMI |
|
Video Input Resolutions |
HD and 4K broadcast resolutions |
|
Video Outputs |
1x HDMI (zero latency pass-through in Tx mode) |
|
Video Output Resolutions |
HD and 4K broadcast resolutions |
|
Audio Input/Output |
Up to 8 channels of audio embedded in HDMI signal Unbalanced analog stereo input via 1/8“ (3.5mm) jack Line Level |
|
Network Connector |
3x RJ45 (LAN 1 for Media and Control with PoE, LAN 2 for Media and Control (redundant), Control LAN for Control data) |
|
RS-232 |
Yes1 |
|
Control and Management |
Web browser-based UI, standalone utility |
|
Performance |
|
|
Maximum Video Resolutions |
4096 x 2160 60p |
|
Bit Depth and Color Space |
YCbCr 4:2:0 10-bit2 and 8-bit3 YCbCr 4:2:2 10-bit RGB 4:4:4 8-bit SDR/HDR4 |
|
Video and Audio Processing |
|
|
Video Scaling |
High Quality multi-tap 10-bit Up/Down Scaler |
|
Video Deinterlacing |
Yes |
|
Color Space Conversion |
Yes |
|
HDCP Support5 |
Yes |
|
Encoding formats |
|
|
Video7 |
Colibri 4:4:4 8-bit codec; HD 200 Mbps, 4K 800 Mbps Optional: JPEG-XS 4:2:2 10-bit; HD 400 Mbps, 4K 1.6 Gbps |
|
Audio |
Uncompressed PCM (~1 Mbps/ch) |
|
Latency |
Less than a 1/4 frame (<4 ms) |
|
Network |
|
|
IP Addressing |
IPv4 IPv66 DHCP (default) and static IP |
|
Supported Protocols |
SMPTE ST 2110 (-10, -20, -21, -22,-30, -31, and -40) SMPTE ST 2059-2 SMPTE ST 2022-7 |
|
Redundancy |
Yes (ST 2022-7) |
|
Command and Control |
HTTPS over TCP |
|
Discovery, Registration and Control |
NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1 |
|
PoE+ |
Yes (IEEE 802.3at Type 2) |
|
Physical |
|
|
Product Dimensions |
7.13 (D) x 7.53 (W) x 1.42 (H) inches 181 (D) x 191 (W) x 36 (H) mm |
|
Unit Weight |
1.40 lbs / 635 g |
|
Cooling |
Fanless |
|
Power |
Device: Input: 12 volts, max 18 Watts PoE+ Optional PSU (sold separately)Line Voltage: 100-240 V a.c., 0.5A Frequency: 50-60 Hz Input: IEC320-C14 Output: DIN4 locking power connector |
|
Hardware and Software |
|
|
Hardware Included |
ConvertIP DRH appliance |
|
Optional Hardware |
ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA) |
|
Accessories (sold separately) |
ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)8 Rackmount kit9 (Part #: RMK-19TR-A) Angled bracket kit (Part #: RMK-6BRKT-A) Secure cable solution for HDMI (Part #: SK-SLND-4) NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB) |
|
Software |
Matrox ConvertIP Command Center (Web UI) Matrox ConvertIP Manager (Microsoft® Windows® 10) |
|
Optional software |
JPEG-XS codec license |
|
Environmental |
|
|
Operating Conditions |
Temperature: 0 to 45 degrees Celsius Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m) Humidity: 20% to 80% non-condensing |
|
Storage Conditions |
Temperature: -40 to 70 degrees Celsius Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m) Humidity: 5% to 95% non-condensing |
|
General |
|
|
EMC/EMI Device Class |
Class A |
|
EMC/EMI Compliance |
CE (EU) FCC (USA) ICES-003 (Canada) KC (Korea) RCM (Aus/NZ) |
|
Environmental Compliance |
China RoHS EU RoHS REACH |
|
Warranty |
Three-year limited warranty with free online or telephone support |
