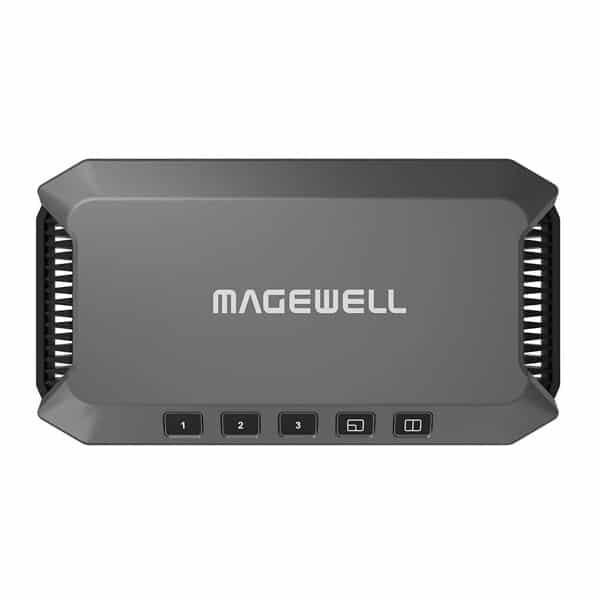

Magewell USB Fusion – Interface d’acquisition

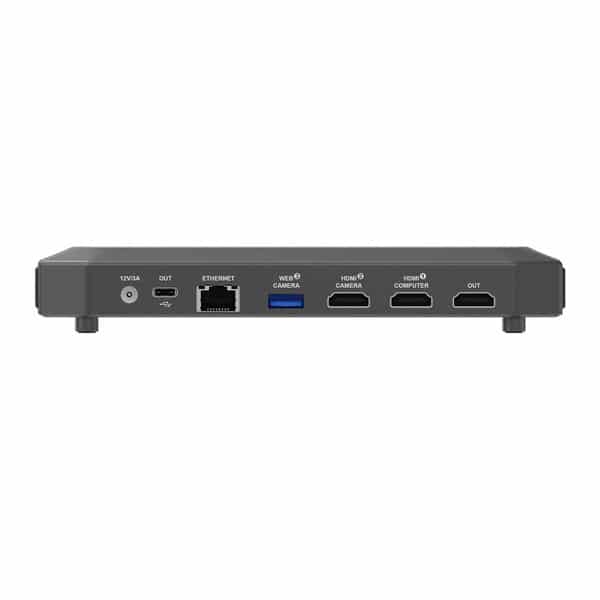

Video Input

HDMI input

Port: 2x HDMI 1.4 Type-A port (HDMI 1 / HDMI 2)

Resolution/frame rate: up to 1920x1080p, 60fps

Color depth: 8-bit

Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

USB input

Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)

Resolution/frame rate: up to 1920x1080p, 60fps

Codec: YUYV, H.264, MJPEG, YU12, UYUV, NV12

Video/image file input

Resolution: up to 4K resolution

Codec: H.264, HEVC (H.265)

Format: MOV/MP4/MKV video files, JPEG/PNG/BMP image files



Audio Input

1x 3.5mm jack: line in port

Format: 2-channel, 48 KHz, 16-bit

1x 3.5mm jack: headset port

Format: 2-channel, 48 KHz, 16-bit

Standard: CTIA

Audio from HDMI 1 port: 2-channel, 48 KHz, 16-bit

Audio from HDMI 2 port: 2-channel, 48 KHz, 16-bit

Audio from WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

Audio embedded in video files

Audio file: MP3, M4A, WAV



Video Output

USB OUT

Port: 1x USB 3.0 Type-C port

Resolution: 1920×1080, 1280×720, 640×480

Frame rate: 60fps, 30fps, 15fps

Color sampling: 8-bit YUYV 4:2:2 / NV12 4:2:0 / ARGB

HDMI OUT

Port: 1x HDMI 1.4 Type-A port

Output image: HDMI 1, HDMI 2, or PROGRAM image

Output resolution: configurable



Audio Output

1x 3.5mm jack: headset port

Format: 2-channel, 48 KHz, 16-bit

Standard: CTIA

Audio output via WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

Audio output via USB OUT port: 2-channel, 48 KHz, 16-bit

Audio output via HDMI OUT port: 2-channel, 48 KHz, 16-bit



Video Processing & Production

HDMI input

Video/audio signal data: auto extracted

Color space/quantization range: calibration supported

De-interlacing: Bob, motion adaptive, motion compensated

EDID: changeable

USB input

Codec: configurable

Resolution/frame rate: configurable

Frame rate/color space conversion: auto

Source switching: auto, manual

Scene compositing: picture in picture, side by side

Scene editing: crop, mirror, scale, rotate, and more

Annotation: pens, shapes, text, and more

Presentation: creation and management supported



Audio Processing & Production

Resampling: auto

Audio de-embedding and embedding: auto

Volume control: supported for audio output and each audio input

Gain: supported

Recording and Screenshot

Recording format: H.264 + MP4

Encoding format for recording: up to 1080p60, configurable

Screenshot format: JPEG

Storage space: 32 GB

Network

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax, Station mode and AP mode supported

USB network

Port: USB OUT

OS version: Windows 10 19H1 and later, macOS 10.12 and later, Linux

IP address: DHCP-assigned, static

DNS server: Auto or manual

Provided Software

USB Fusion App: create, edit and control presentations

OS version: iOS 12 and later, Android 7.0 and later

Web UI: configure and manage the device and presentations

Compatible Software

Skype, Zoom, Microsoft Teams

Other UVC/UAC compliant, DirectShow/V4L2/AVFoundation compatible software

Compatible OS

Windows: Windows 7 and later, Server 2008 and later (x86 & x64)

Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM)

Mac: OS X 10.9 and later, macOS 10.12 and later

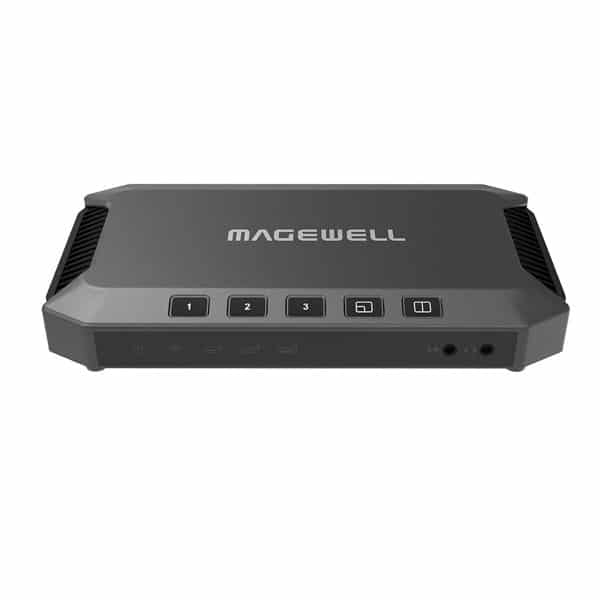

Buttons

Switch and composite sources

LED Indicators

Power/Wi-Fi/HDMI 1/HDMI 2/Web Camera 3 indicators

On: connected/signal locked

Off: not connected/signal not locked

Line-in/headset indicators

On: connected

Pulsing: not connected

Power

Power port: 2.1mm x 5.5mm jack

Power input: 12V/3A

Max. power usage: 21.3W

Dimensions

186mm x 101.2mm x 30mm

Accessories

1x Power adapter (international)

1x USB 3.0 cable

Working Environment

Operating temperature: 0 to 40 deg C

Storage temperature: –20 to 70 deg C

Relative Humidity: 5% to 90% non-condensing

1x USB Fusion

1x Power Adapter

1x USB 3.0 cable
