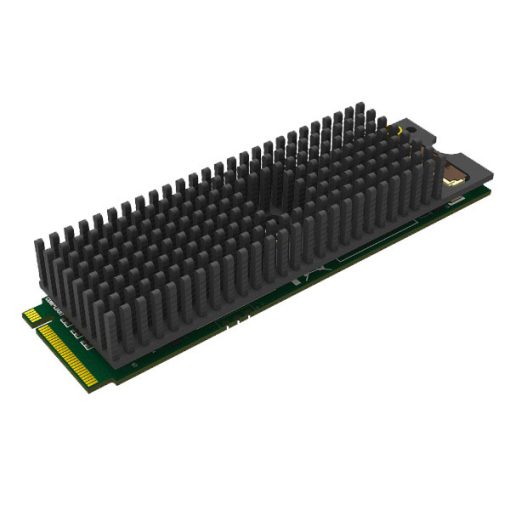

Magewell Eco Capture AIO M.2
La Magewell Eco Capture AIO M.2 est une carte PCIe monocanal qui vous permet de capturer une résolution de sortie vidéo allant jusqu’à 2048x1080p60 via HDMI et 2048x1080p60 via SDI. Grâce à l’interface DirectShow existante, la carte peut être utilisée avec une variété de logiciels et prend en charge des programmes tels que : OBS, VLC, VirtualDub, XSplit, Wirecast et bien d’autres. Elle peut être branchée sur le connecteur M.2 2280 PCIe de la carte mère et est donc idéale pour les boîtiers petits et portables. Microsoft Windows et diverses distributions Linux sont pris en charge. De plus, Magewell propose un SDK en téléchargement qui permet une intégration logicielle complète.
Input Signal
- HDMI 1.4a (via an accessory cable)
- SD/HD/3G SDI (via an accessory cable)
HDMI Input Features
- 165MHz HDMI receiver, max input: 2048x1080 60fps 4:4:4
- Custom EDID
- Input RGB/YCbCr 4:4:4 8/10/12-bit, YCbCr 4:2:2 8/10/12-bit
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- HDMI interface: HDMI 1.4a
SDI Input Features
- Max input: 2048x1080 60fps 4:2:2 10bit
- Up to 8-channel 48KHz embedded audio
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard
- Input RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 10/12-bit
- Input SDI signals transmitted up to 110m for 3G-SDI signals
- Support Closed Caption via SDK
CVBS Input Features
- 12-bit ADC
- Support NTSC, PAL and SECAM standard
- Auto-detect input signal
Process and Capture Features
- ~700MB/s per channel DMA bandwidth in PCIe 2.x system
- ~400MB/s per channel DMA bandwidth in PCIe 1.x system
- Video processing pipelines with ~180Mpixels/s processing bandwidth
- Capture videos up to 2048x1080, frame rates up to 144fps
- HDMI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
- 2048x1080p60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/75
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 720x576p25
- 720x480p30
- SDI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
- 2048x1080p60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
- Support for RGB/YCbCr 601/YCbCr 709/YCbCr 2020
- Support video scaling, de-interlacing, color format conversion, frame rate conversion
- Output videos at 8-bit 4:4:4
- 100ns high-resolution clock based on hardware implementation
- Hardware clock synchronization across cards via SDK
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
- Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
Output Interface
- M.2 2280 Type M (PCIe Gen2 x2)
Recommended OS
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
Compatible Software
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
LED Indicator
- Status LEDs indicate the working state of the device:
- Pulsing slowly: no valid input signal
- On: input signal locked
- Off: no power
- Double blinks: memory abnormal or FPGA misconfigured
Form Factor
- M.2 Type–2280 (22 x 80 mm)
Accessories
- 1 x FPC ribbon cables (Part number: 11514)
- 1 x FPC to HDMI type A adapter (Part number: 11514)
- 1 x MMCX to BNC cable
Power Consumption
- Max current at 3.3V: ~ 0.89 A
- Max power consumption: ~ 2.94 W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% (non-condensing)
