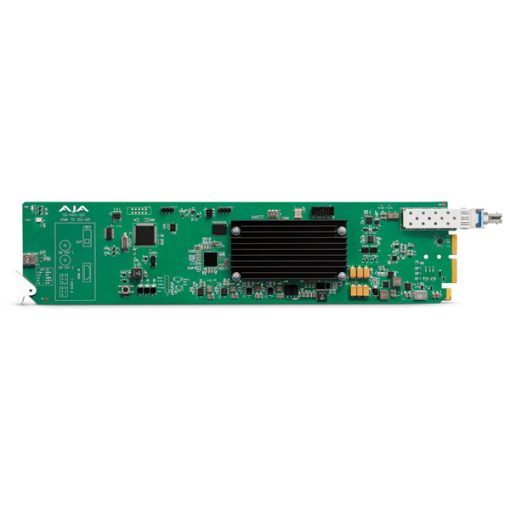

AJA OG-HA5-12G-T-ST – Carte PCIe

Video Formats

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i

Note: Raster and Frame Rate Dependent, please see the OG-HA5-12G Video Formats in Documents and Manual.

Video Input Digital

• 1x HDMI Type A connector, HDMI v2.0b
  • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
  • HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576i 50
  • (SD) 720x480i 59.94

HDCP Decryption

• Not supported. By definition, SDI outputs are unencrypted.

Video Output Digital

• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10-bit, 12-bit*
• 1x 12G-SDI
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
  • (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
• 1x 6 Gb SDI
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B DL)
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p** 50, 59.94, 60
• 1x 1.5 Gb SDI
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94

*Some 12-bit formats not supported, please see OG-HA5-12G Video Formats in Documents and Manuals.
**1280x720p is Level A Only

Video Output Digital - Additional for OG-HA5-12G-T Only

• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 3.5 dB (min)

Video Output Digital - Additional for OG-HA5-12G-T-ST Only

• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 2 dBm (max)
  • Extinction Ratio: 3.5 dB (min)

Audio Pass-Through Formats

• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

• HDMI embedded audio, 24-bit, 8-channel

Audio Input Analog

• 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)

Audio Output Digital

• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

User Interface

• openGear DashBoard network control software via Windows, macOS, or Linux

Size (w x d x h)

• openGear standard form factor, front slot and rear card
• Two slots required for each card

Weight

• 0.5 lb (0.3 kg)

Power

• openGear frame compatible, 14 watts max per card

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
