Panasonic AW-UR100GJ – Caméra PTZ 4K
Le prix initial était : 13 800,00 €.11 730,00 €Le prix actuel est : 11 730,00 €. HT 14 076,00 € TTC
Sur commande

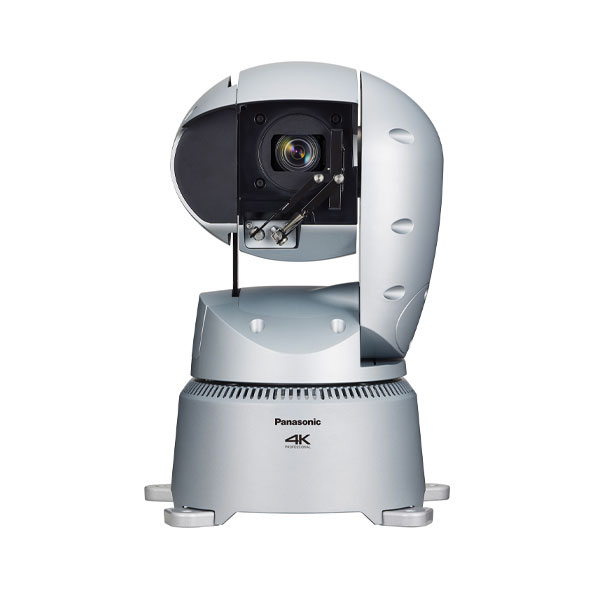

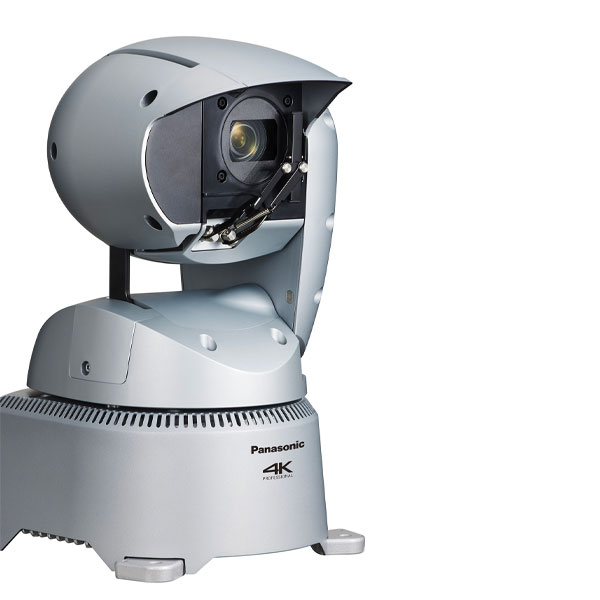

Présentation de la caméra Panasonic AW-UR100GJ
La caméra PTZ Outdoor 4K AW-UR100 capture des images de qualité même dans les conditions les plus difficiles. Le design de la caméra a été pensé pour résister aux environnements les plus difficiles comme les aéroports, les entrepôts des régions côtières, les navires, les hippodromes ainsi que les retransmissions sportives live, même par très mauvais temps, sous de fortes pluies, tempêtes de neige ou même ouragans.
Points forts de la AW-UR100GJ
- Première caméra PTZ outdoor 4K60p du marché certifiée IP65
- Capteur CMOS 4K de type 1/2,5
- Filtres ND (transparent, 1/8, 1/16, 1/64)
- Contrôle IP et streaming
- Equipée de trois systèmes de stabilisation d’image différents : O.I.S, E.I.S et D.I.S.S
- Essuie-glace installé sur la lentille et dégivreur fonctionnant jusqu’à -15°C
- Objectif grand angle horizontal de 74,1° pour des panoramiques de feu
- Compatibilité 4K/60P, zoom optique 24x et zoom numérique 10x
| Input/Output | |
|---|---|
| Output Format (High bandwidth NDI) | [4K Format] 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p [HD Format] |
| Current Consumption | TBD |
| Power Requirements | DC12V~21.8±10%(10.8V~24.0V) |
| Ambient Operating Temperature | -15℃ to 45℃ (5 ℉ to +113 ℉) (preheating is required when -5 °C (23 °F) or less) |
| PoE++ | IEEE802.3bt compliant:DC42-57V (Software authentication (LLDP) is supported)) |
| Storage Temperature | –20 °C to +55 °C (–4 °F to +113 °F) |
| Ambient Operating Humidity | 10 % to 100 % (no condensation) |
| Dimensions (W x H x D) | TBD |
| Finish | TBD |
| Mass | TBD |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1010, AK-HRP1015, AK-HRP1000, AK-HRP1005, AK-HRP250 |
| service life | Functional durability 7 years (8H), life end 20 years |
| Imaging Sensors | 1/2.5-type (1/2.5″) 4K MOS Effective Pixels :3,864×2,196= Approx. 8,490,000 pixels |
| Camera Unit | |
| Lens | Motorized Optical 24xZoom F1.8~F4.0 (f=4.12 mm ~ 98.9mm,35mm equivalent:25.0mm ~ 600.0mm) i.Zoom(UHD:28x,FHD:36x) D.Extender(1.4x,2x) Digital Zoom 10x |
| Optical Filter | Through､1/4,1/16,1/64 ,IR Through (IR Through is uesd as “night mode”) |
| Conversion Lens | Not Supported |
| Angle of View Range | Horizontal:74.1°(wide) – 3.3°(tele) Vertical:46.0°(wide) – 1.9°(tele) Diagonal:81.8°(wide) – 3.8°(tele) |
| Focus Distance | Entire zooming range :1200 mm, Wide end :100 mm |
| Standard Sensitivity | F4/2,000lux(Non-public) *With full auto function * Although it is not described in manuals, catalogs, etc., the numerical value is described as a guideline for internal materials. |
| Color Separation Optical Systems | 1MOS |
| Minimum Illumination | 3lx(F1.8, 59.94p, 50IRE, +42dB, without accumulation) |
| Horizontal Resolution | 1,500 TV Typ(center area, UHD Mode, Wide) |
| Gain Selection | Auto､0dB ~ 36dB* Can be set in 1dB step increments. (Super Gain function equipped : 37 dB to 42 dB) |
| Frame Mix | Auto､0dB､6dB､12dB､18dB､24dB *If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p､1080/25p, it cannot be set. |
| Synchro Scan | 59.94p / 59.94i mode 60.0Hz~7200Hz 29.97p mode 30.0Hz~7200Hz 23.98p / 24p mode 24.0Hz~7200Hz 50p / 50i mode 50.0Hz~7200Hz 25p mode 25.0Hz~7200Hz |
| Gamma | HD/NORMAL/CINEMA1/CINEMA2/Still like *Black Gamma is not supported |
| Electronic Shutter Speed | 59.94p / 59.94i mode 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p mode 23.98p / 24p mode 50p / 50i mode 25p mode |
| White Balance | ATW, 3200K､5600K AWB-A, AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) (ATW Speed 3-stage variables.) |
| Chroma Amount Variability | OFF, -99%~99% |
| Output Format (UHD/FHD SDI) | [4K Format] 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) [HD Format] |
| Shine File | Full Auto, Scene1, Scene2, Scene3 |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |

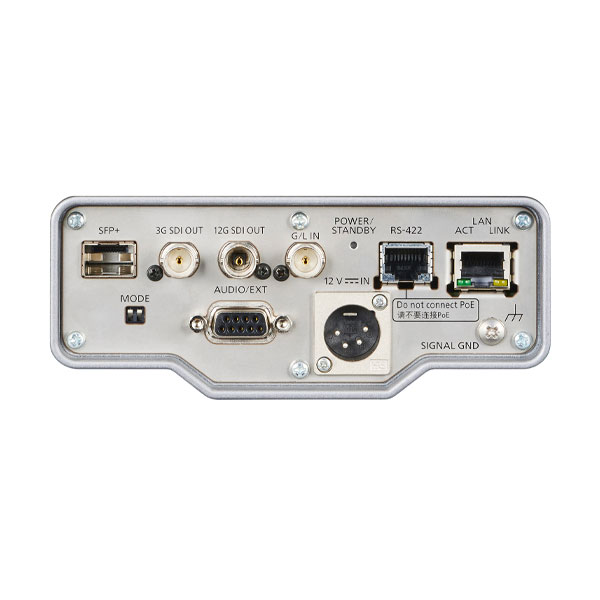

| Input | DC 12 V IN, G/L IN(BNC) |
| G/L In | BBS (Black Burst Sync), tri-level sync supported) |
| Output | |
| SFP+ | SFP+ standard(Single Fiber) *This unit does not support input by optical signals |
| 12G SDI OUT | SMPTE2082-1, SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT1 | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| LAN | LAN connector for IP control（RJ‑45） |
| IP Connecting Cable | if you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable)Max100 m If you don’t have PoE++ ethernet hub LAN cable*1( category 5e or above､straight cable)Max100 m *1 STP(Shielded Twisted Pair) is recommended *2 Category 6 or above is used for 4K video transmission. |
| AW Protocol Connecting Cable | LAN cable*(category 5e or above, straight cable)Max1000 m *STP(Shielded Twisted Pair) is recommended |
| Pan-tilt Head Control | |
| Pan-Tilt Head Unit | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Pan/Tilt Operation Speed | Speed range:0.08 °/s ~60°/s( Normal mode) *3 speed modes installed Normal:60°/s,Fast1:90°/s, Fast2:180°/s |
| Panning Range | ±175° |
| Quietness | TBD |
| Tilting Range | –30°~ 210 |
| Vibration Correction | D.I.S.S.(Dynamic Image Stabilizing System) |
| Supported OS, browsers | TBD |
| IP Streaming | |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI/HX, High Bandwidth NDI |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 |
| Image Transmission setting (JPEG) | Frame rate : Max 30fps *No bit rate specified *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality(Fine/Normal) |
| Image Transmission Setting (H.264) | Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission mode: CBR, VBR Frame Rate Max to Min Bit Rate |
| Image Transmission Setting (H.265) | Transmission Type : Unicast port (AUTO) Unicast port (MANUAL) Multicast port Transmission Mode :CBR, VBR Frame Rate Max to Min Bit Rate |
| Supported Protocol | Networl Protocol: ICMP, ARP, GARP, MLD Transmission Protocol: Applocation Protocol: Video Streaming Protocol: External Device Cooperation Protocol:FreeD, TSL5.0, SNMP |
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch |
| NDI (High Bandwidth NDI, NDI/HX Ver.2) | |
| Image Resolution (NDI|HX Ver.2) | 1920×1080, 1280×720 |
| Image Streaming Setting | High Bandwidth NDI Transmisiion Type : TCP/UDP Multicast Bit Rate : Max 250Mbps NDI/HX: Frame Rate Max Bit Rate |
| Audio Compression Type 2 | NDI:AAC, 48kHz, 2ch NDI/HX:AAC-LC, 48kHz/16bit/2ch |
| F Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| NDI | High Bandwidth NDI,NDI|HX included as standard |
| RS-422 | CONTROL IN RS422A (RJ‑45) |
| Image Stabilization | TBD |
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) |
| New Feature | |
| IP menu display | supported *Non-synchronous with SDI-OUT |
| VR (FreeD) (IP/RS422) | supported |
| Wireless Remote Controller | |
| Horizontal display function | TBD |
