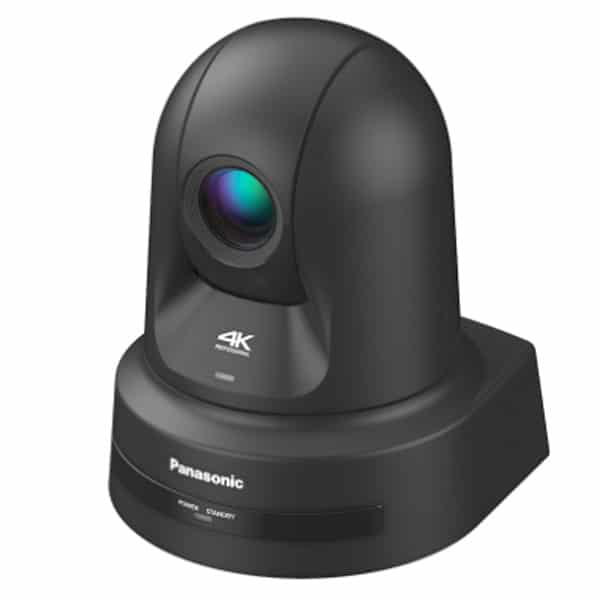

Panasonic AW-UE80 (Noire) – Camera PTZ
5 240,00 € Le prix initial était : 5 240,00 €.4 320,00 €Le prix actuel est : 4 320,00 €. HT 5 184,00 € TTC
| Couleur: Noir |
|
Sur commande
Présentation de la Panasonic AW-UE80 (Noire)
La Panasonic AW-UE80 (Noire) est une caméra tourelle qui assure une diffusion live de vidéo 4K50/60p de haute qualité grâce notamment à son nouveau capteur MOS 4K de type 1/2,5, à son processeur Venus Engine et à sa stabilisation optique de l’image (OIS). Elle offre également un grand-angle qui couvre jusqu’à 74.1°, un zoom optique 24x, ainsi qu’un zoom intelligent 28x en UHD et 36x en Full HD. Compacte et légère, elle est facile à manipuler et à installer dans n’importe quel type d’environnement, notamment lors de positionnement difficile tel que sur un plafond. De plus, elle prend en charge PoE+ pour l’alimentation, le contrôle et la transmission vidéo de la caméra sur un seul câble, ce qui facilite encore sa mise en fonctionnement. Ainsi, même les personnes peu familiarisées avec la prise de vue vidéo ou le fonctionnement d’une caméra peuvent l’utiliser.
Silencieuse, elle se fond parfaitement dans votre environnement et permet une utilisation flexible dans tous les lieux ou conditions de tournage vidéo. Elle est idéale pour la diffusion d’événements en direct, pour des configurations de studio d’entrée de gamme, pour l’enseignement supérieur et pour des installations d’entreprise.
Côté connectiques, la AW-UE80 intègre une grande variété de sorties telles que 3G-SDI, HDMI et IP. Une grande variété de protocoles de transmission IP est également disponible, dont le protocole Secure Reliable Transport (SRT) qui permet de maintenir la stabilité de la transmission dans des environnements difficiles. La caméra prend également en charge le NDI à large bande passante qui peut transmettre des vidéos full HD jusqu’à 100 Mbps. La caméra tourelle propose également le NDI|HX version 2 à faible bande passante et à haut rendement pour permettre la transmission vidéo à faible débit. Dans les deux cas, un seul câble LAN est nécessaire.
Enfin, elle dispose du support FreeD qui permet la connexion avec les systèmes AR/VR. Cela permet de sortir les informations de suivi de la caméra (pan/tilt/zoom/focus/iris) ainsi qu’un signal de synchronisation pour construire facilement des systèmes sans encodeur.
Points forts de la caméra PTZ AW UE80 (Noire)
- Capteur MOS 4K de type 1/2,5
- Stabilisation optique de l’image (OIS)
- Grand-angle qui couvre jusqu’à 74.1°
- Zoom optique 24x
- Zoom intelligent 28x en UHD et 36x en Full HD
- Compacte et légère
- Prend en charge PoE+
- Silencieuse
- Sorties 3G-SDI, HDMI et IP
- Protocole SRT, NDI et NDI|HX (v2)
- FreeD pour la connexion avec les systèmes AR/VR
| LENS | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
|---|---|
| General | - |
| MINIMUM ILLUMINATION | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Zoom | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x |
| Horizontal Resolution | 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide) |
| Input Connectors | DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported) |
| Input/Output Connector | - |
| Gain Selection | Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB) |
| WHITE BALANCE | • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB: AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value) |
| Storage Temperature | -20 to 50°C (-4 °F to 122 °F) |
| VIDEO OUTPUT | - |
| Current consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode") |
| Output Format | - |
| Color separation optical system | 1MOS |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
| Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like |
| Scene File | - |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Pan/Tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*8 • 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s |
| Quietness | NC25 or less |
| Electronic Shutter Speed | - |
| Tilting Range | -30°to 90°*9 |
| Imaging Sensors | 1/2.5-type MOS×1 |
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 |
| Chroma Amount Variability | OFF, -99 ％ to 99 % |
| Ambient Operating Humidity | 20 ％ to 90 ％ (no condensation) |
| Finish | AW-UE80W: WhiteAW-UE80K: Black |
| Image Resolution | 1920×1080, 1280×720, 640×360, 320×180 |
| Panning range | ±175° |
| Camera Unit | - |
| Mass | Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket) |
| INPUT | - |
| OUTPUT | - |
| INPUT/OUTPUT | - |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 |
| Camera/pan-tilt head control | - |
| Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2 |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W x H x D) (mm) | 170.0 mm x 211.0 mm x 171.0 mm |
| Dimensions (W x H x D) (inch) | 6.693 inches x 8.307 inches x 6.732inches |
| PoE++ | IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
| Syncro Scan | - |
| Supported operating systems and web browsers | - |
| IP Streaming | - |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI® |
| Image Transmission setting (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
| Image Transmission Setting (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| Audio Compression Type | AAC-LC, 48 kHz, 16 bit, 2 ch |
| Pan Tilt Head Unit | - |
| Supported protocol | - |
| Note | *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT |
| Other Function | - |
| Tally LED display color | red / green |
| NDI Support | NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14 |
| Mic/line input | AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) |
| IP connecting cable | • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| Image Stabilization | OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) |
| Input/Output Connector | RS-422 | CONTROL IN RS422A(RJ-45) |
| Windows | Windows 10 Windows® Internet Explorer® 11(32 bit / 64 bit) Microsoft Edge Google Chrome |
| Mac | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
| Video Output | HDMI | HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported |
| Supported protocol | IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| Supported protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT |
| Output Formats | High Bandwidth NDI® : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p |
| New Functions | - |
| Electronic Shutter Speed | 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz |
| Synchro Scan | 29.97p | 30.0 Hz to 7200 Hz |
| Synchro Scan | 23.98p/24p | 24.0 Hz to 7200 Hz |
| Synchro Scan | 50p/50i | 50.0 Hz to 7200 Hz |
| Synchro Scan | 25p | 25.0 Hz to 7200 Hz |
| Output Format | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| Output Format | HDMI | 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
| Output Format | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| Video Output | 3G-SDI OUT | SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported |
| Image Resolution | NDI®|HX version 2 | 1920x1080, 1280x720 |
| Audio Compression Type | High Bandwidth NDI® | AAC-LC, 48 kHz, 2 ch |
| Audio Compression Type | NDI®|HX version 2 | AAC-LC, 48 kHz, 16 bit, 2 ch |
| F-Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| Menu Display on IP Video | Supported*15 |
| Power LED | ON/OFF control |
| Tripod Screw Penetration Measures | Possible |
| Pan/Tilt Mechanical Method | New Direct Drive System |
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF)* Default is OFF |
| VR Compatibility | Supports FreeD protocol |
| Android | Android OS Google Chrome |
| iPhone / iPad | iOS Safari iPadOS |
| Image Transmission Setting (High Bandwidth NDI®) | Transimission Type: TCP/UDP, Unicast/Multicast Max Bit Rate: 250 Mbps |
| Image Transmission Setting (NDI®|HX version 2) | Transimission Type: TCP/UDP, Unicast/Multicast |
