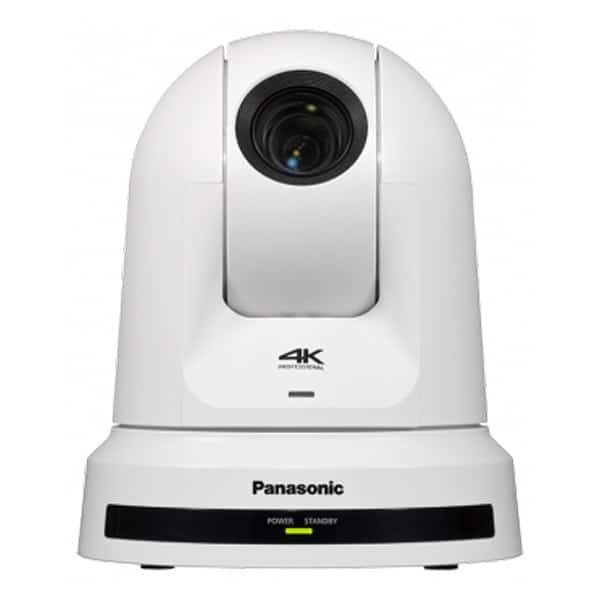

Panasonic AW-UE50 (Blanche) – Camera PTZ
3 140,00 € Le prix initial était : 3 140,00 €.2 669,00 €Le prix actuel est : 2 669,00 €. HT 3 202,80 € TTC
| Couleur: Blanc |
|
Sur commande
Présentation de la Panasonic AW-UE50 (Blanche)
La Panasonic AW-UE50 (Blanche) est une caméra tourelle qui assure une diffusion live de vidéo 4K de haute qualité grâce notamment à son nouveau capteur MOS 4K de type 1/2,5, à son nouveau processeur et à sa stabilisation optique de l’image (OIS). Elle offre également un grand-angle qui couvre jusqu’à 74.1°, un zoom optique 24x, ainsi qu’un zoom intelligent 28x en UHD et 36x en Full HD. Compacte et légère, elle est facile à manipuler et à installer dans n’importe quel type d’environnement, notamment lors de positionnement difficile tel que sur un plafond. De plus, elle prend en charge PoE+ pour l’alimentation, le contrôle et la transmission vidéo de la caméra sur un seul câble, ce qui facilite encore sa mise en fonctionnement. Ainsi, même les personnes peu familiarisées avec la prise de vue vidéo ou le fonctionnement d’une caméra peuvent l’utiliser.
Silencieuse, elle se fond parfaitement dans votre environnement et permet une utilisation flexible dans tous les lieux ou conditions de tournage vidéo. Elle est idéale pour la diffusion d’événements en direct, pour des configurations de studio d’entrée de gamme, pour l’enseignement supérieur et pour des installations d’entreprise.
Côté connectiques, la AW-UE50 intègre une grande variété de sorties telles que 3G-SDI, HDMI et IP. Une grande variété de protocoles de transmission IP est également disponible, dont le protocole Secure Reliable Transport (SRT) qui permet de maintenir la stabilité de la transmission dans des environnements difficiles. La caméra prend également en charge la version 2 de la norme NDI|HX à haut rendement et faible bande passante, qui est disponible via une mise à niveau payante en option. Cela permet une transmission vidéo à faible débit sur un seul câble LAN.
Points forts de la caméra PTZ AW UE50 (Blanche)
Capteur MOS 4K de type 1/2,5
Stabilisation optique de l’image (OIS)
Grand-angle qui couvre jusqu’à 74.1°
Zoom optique 24x
Zoom intelligent 28x en UHD et 36x en Full HD
Compacte et légère
Prend en charge PoE+
Silencieuse
Sorties 3G-SDI, HDMI et IP
Protocole SRT et NDI|HX (v2)
| LENS | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
|---|---|
| GENERAL | – |
| MINIMUM ILLUMINATION | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| ZOOM | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x • Digital extender zoom: 1.4 x , 2 x |
| HORIZONTAL RESOLUTION | UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area) |
| INPUT/OUTPUT CONNECTOR | |
| GAIN SELECTION | Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB) |
| WHITE BALANCE | • ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB : AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value) |
| STORAGE TEMPERATURE | -20 °C to 50 °C (-4 °F to 122 °F) |
| VIDEO OUTPUT | |
| CURRENT CONSUMPTION | 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply) |
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| OPTICAL FILTER | – |
| OUTPUT FORMAT | |
| S/N | – |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
| GAMMA | HD / Normal / Cinema1 / Cinema2 / Still Like |
| SCENE FILE | – |
| SYNCHRONIZATION SYSTEM | |
| INPUT CONNECTOR | DC 12 V IN |
| PAN/TILT OPERATION SPEED | Speed range: 0.08°/s to 60°/s (Normal mode)*7 • 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s |
| QUIETNESS | NC25 or less |
| ELECTRONIC SHUTTER SPEED | – |
| TILTING RANGE | -30°to 90°*8 |
| IMAGING SENSORS | 1/2.5-type 4K MOS x1 |
| FRAME MIX | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 |
| CHROMA AMOUNT VARIABILITY | OFF, -99 ％ to 99 % |
| SUPPORTED PROTOCOL | |
| AMBIENT OPERATING HUMIDITY | 20 ％ to 90 ％ (no condensation) |
| FINISH | AW-UE50W: WhiteAW-UE50K: Black |
| OTHER FUNCTIONS | |
| IMAGE RESOLUTION | 1920×1080, 1280×720, 640×360, 320×180 |
| NOTE | *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:To ensure safety, the unit must be secured using the mount bracket supplied.*7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*8:The main unit may appear in the video depending on the pan/tilt position.*9:Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.*10:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*11:NDI® is a registered trademark of NewTek, Inc. in the United States.*12:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®|HX version 2 and Full HD output.*13:For details, please contact a sales representative of Panasonic. To use NDI®|HX, the driver must be installed and activated.*14:Non-synchronous with SDI-OUT |
| PANNING RANGE | ±175° |
| CAMERA UNIT | – |
| MASS | Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket) |
| INPUT | |
| OUTPUT | |
| INPUT/OUTPUT | |
| INSTALLATION METHOD | Stand-alone (Desktop) or suspended (Hanging)*6 |
| CAMERA/PAN-TILT HEAD CONTROL | |
| CONTROLLER SUPPORTED | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2 |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| DIMENSIONS (W X H X D) (MM) | 160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket) |
| DIMENSIONS (W X H X D) (INCH) | 6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket) |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
| SYNCRO SCAN | – |
| IP STREAMING | |
| IMAGE STREAMING MODE | JPEG (MJPEG), H.264, H.265, NDI®|HX version 2*10,11,12,13 (H.264) |
| IMAGE TRANSMISSION SETTING (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
| IMAGE TRANSMISSION SETTING (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| IMAGE TRANSMISSION SETTING (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| AUDIO COMPRESSION TYPE | AAC-LC, 48 kHz / 16 bit / 2ch |
| TALLY LED DISPLAY COLOR | red / green |
| POE+ | IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
| PAN TILT HEAD UNIT | |
| NDI SUPPORT | NDI®|HX version 2: Upgradable |
| MIC/LINE INPUT | AAC compatibility (compatible with IP only) Φ3.5 mm stereo mini jack • During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) “• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)” • During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ • Input volume variable range: -36 dB to 12 dB (3 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz |
| IP CONNECTING CABLE | • If you have a PoE+ ethernet hub LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don’t have a PoE+ ethernet hub LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft) |
| AW PROTOCOL CONNECTING CABLE | • LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| ELECTRONIC SHUTTER SPEED | 59.94P/59.94I | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 29.97P | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 50P/50I | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 25P | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| INPUT/OUTPUT CONNECTOR | LAN | LAN terminal for IP control (RJ-45) |
| INPUT/OUTPUT CONNECTOR | RS-422 | CONTROL IN RS422A (RJ-45) |
| WINDOWS | Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome |
| MAC | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
| ANDROID | Android OS Google Chrome |
| VIDEO OUTPUT | HDMI | HDMI 1.4 connector, 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| ELECTRONIC SHUTTER SPEED | 23.98P/24P | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94P/59.94I | 60.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 29.97P | 30.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 23.98P/24P | 24.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 50P/50I | 50.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 25P | 25.0 Hz to 7200 Hz |
| OUTPUT FORMAT | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| OUTPUT FORMAT | HDMI | 4K | 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
| OUTPUT FORMAT | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| VIDEO OUTPUT | 3G-SDI OUT | SMPTE292M, 424M/ 75 Ω (BNCx1) • Level-A/Level-B supported |
| IPHONE / IPAD | iOS Safari iPadOS |
| IMAGE STABILIZATION | OIS 2-axis MENU switching: Select between Off/O.I.S. |
| SUPPORTED PROTOCOL | IPV4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| SUPPORTED PROTOCOL | IPV6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS | *9 |
| IMAGE RESOLUTION | NDI®|HX VERSION 2 | 1920×1080, 1280×720 |
| AUDIO COMPRESSION TYPE | NDI®|HX VERSION 2 | AAC-LC, 48 kHz, 16 bit, 2 ch |
| F-NUMBER DISPLAY | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| MENU DISPLAY ON IP VIDEO | Supported*14 |
| POWER LED | ON/OFF control |
| TRIPOD SCREW PENETRATION MEASURES | Possible |
| PAN/TILT MECHANICAL METHOD | New Direct Drive System |
| PRIVACY MODE | The lens surface faces backward when standing by (ON/OFF) * Default is OFF |
| IMAGE TRANSMISSION SETTING (NDI®|HX VERSION 2) | Transmission Type: Streaming method: TCP/UDP, Unicast/Multicast |
| NEW FUNCTIONS |
