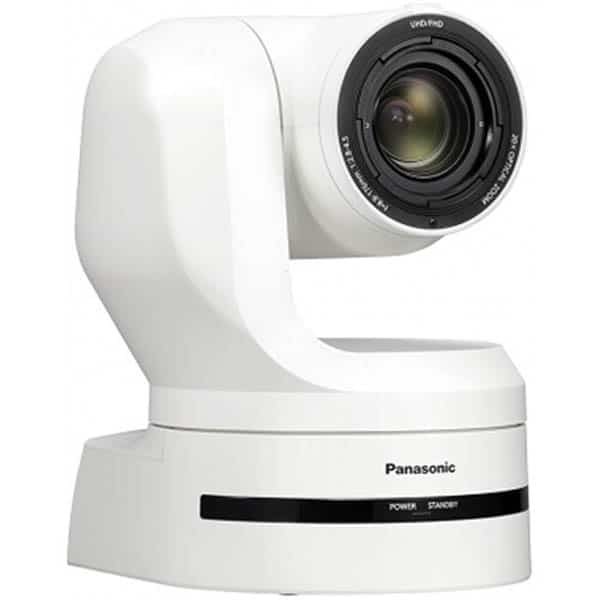

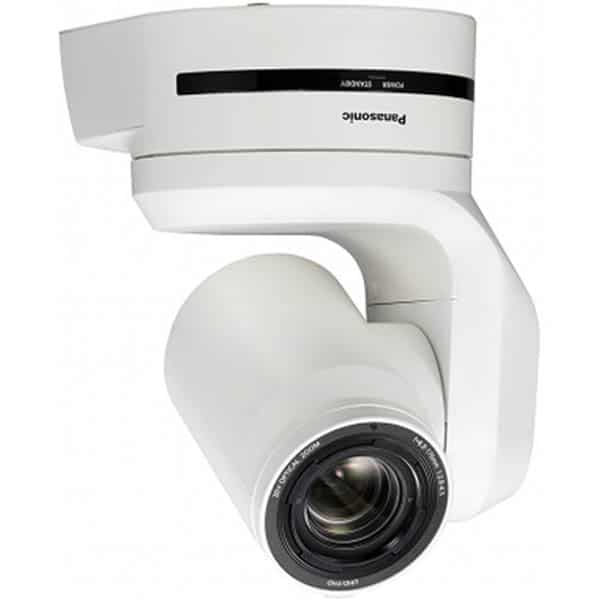

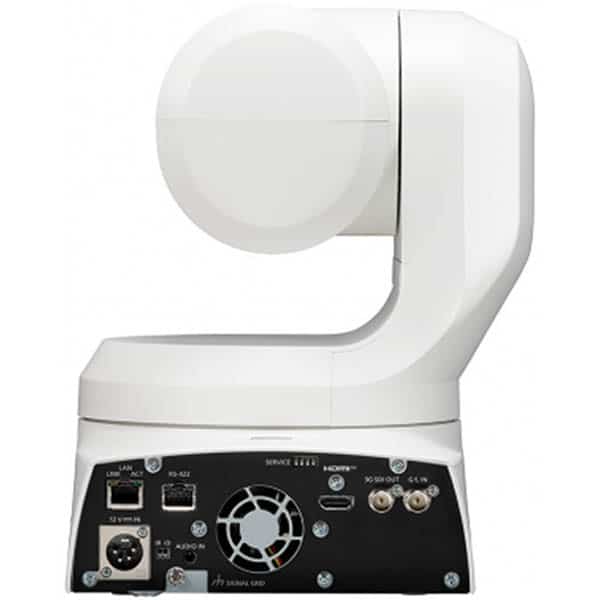

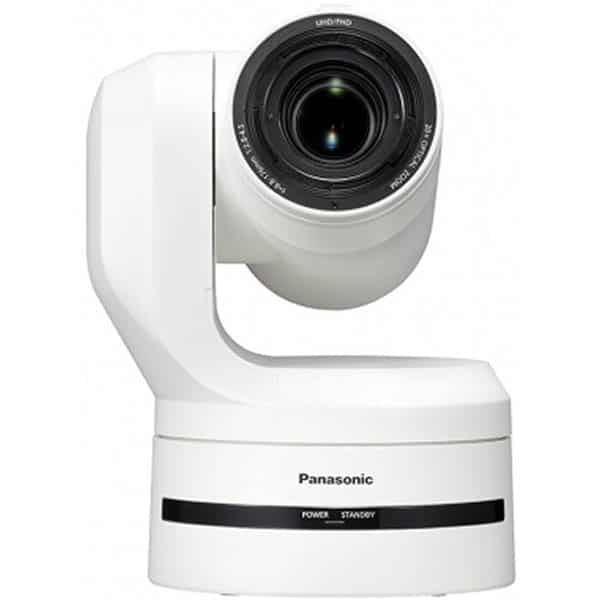

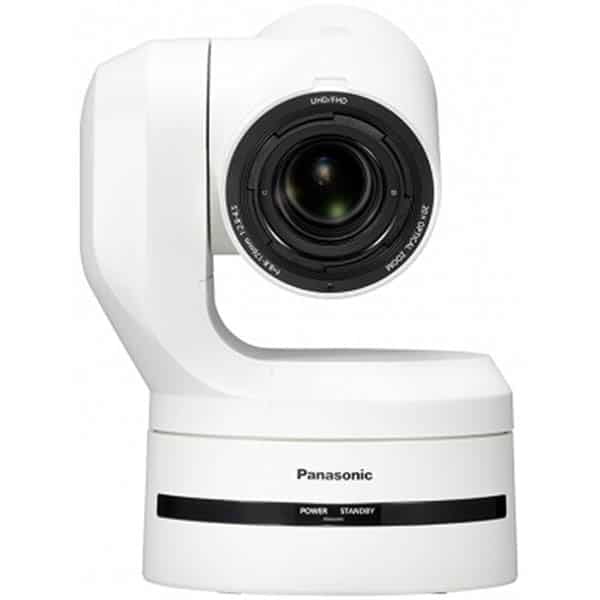

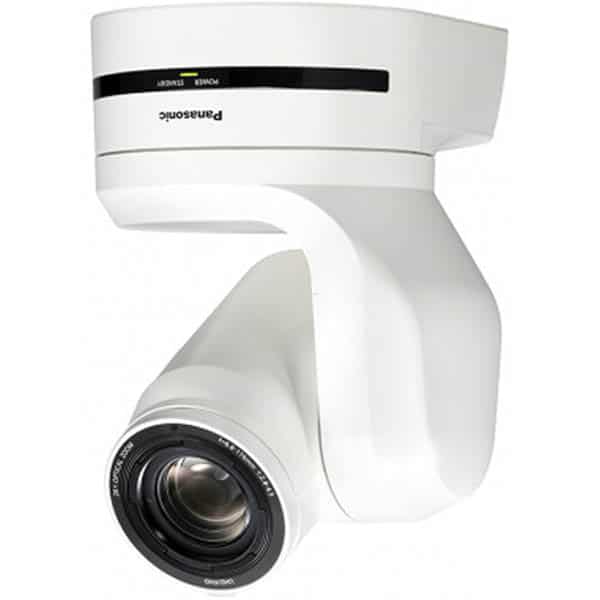

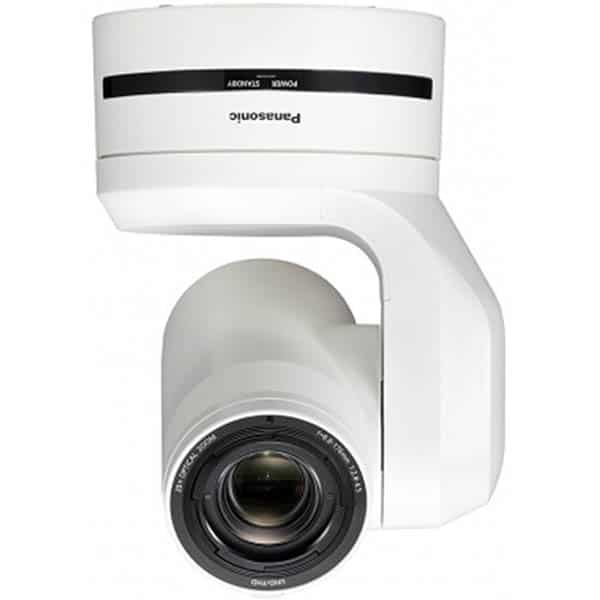

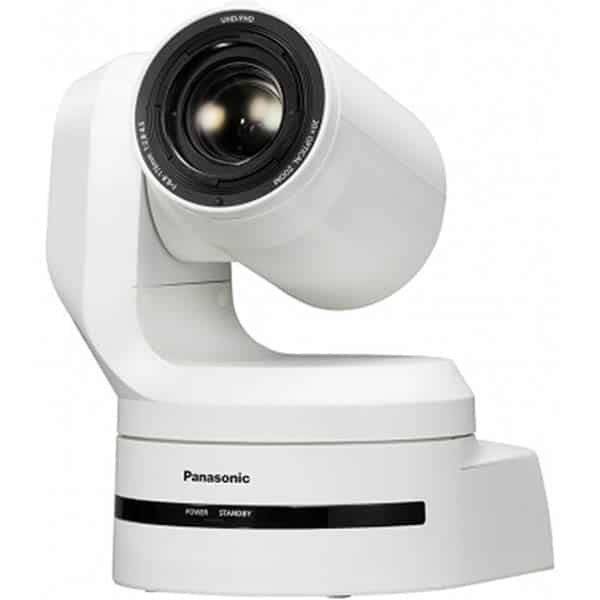

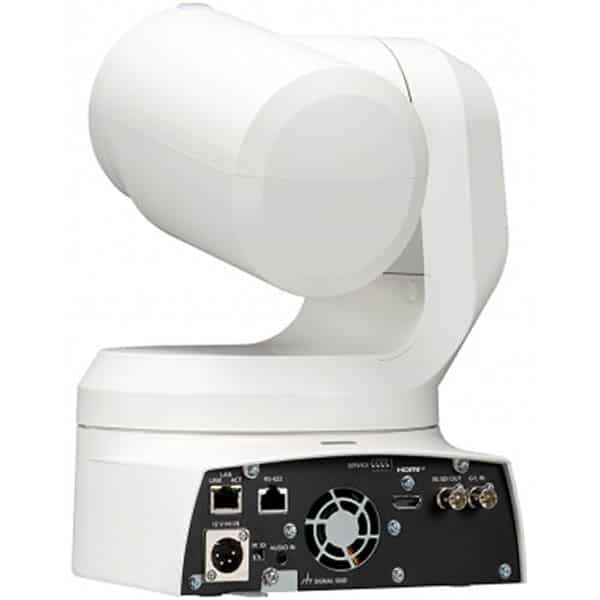

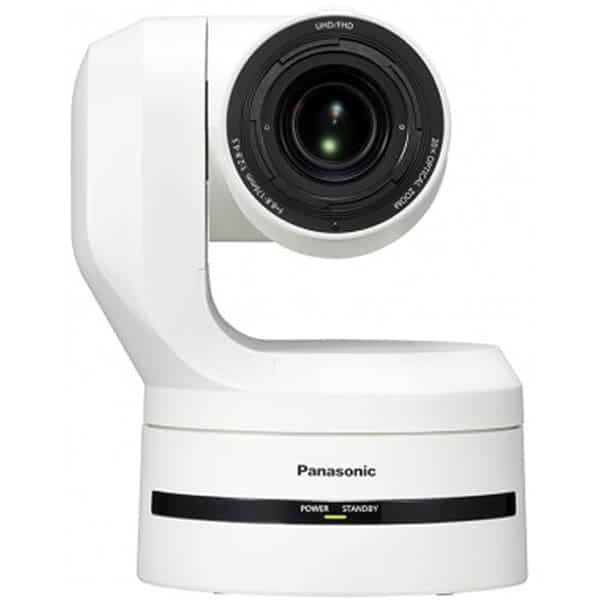

Panasonic AW-HE145 (Blanche) – Caméra PTZ
6 500,00 € Le prix initial était : 6 500,00 €.5 999,00 €Le prix actuel est : 5 999,00 €. HT 7 198,80 € TTC
| Couleur: Blanc |
|
Sur commande
Présentation de la Panasonic AW-HE145 (Blanche)
La Panasonic AW-HE145 (Blanche) est une caméra PTZ de haute qualité qui vous permet de capturer des vidéos 1080p dans votre salle de conférence, votre lieu de culte ou encore vos lieux d’enseignement. Elle délivre un rendu particulièrement fluide, même pour les événements sportifs. Grâce à son capteur MOS 1″, elle offre une haute sensibilité F9/2000 lx lui permettant d’être performante même en basse lumière. Elle dispose également d’un zoom optique 20x pour une prise de vue grand-angle de 75,1°, de sorties HDMI et 3G-SDI, d’une prise en charge du streaming LAN RJ45 et du SRT pour une transmission vidéo stable
Lorsqu’elle est connectée à Internet, cette caméra IP vous permet de contrôler les actions PTZ et de surveiller une zone à distance via un navigateur Web. Cela vous offre plusieurs avantages tels que des coûts d’intégration réduits, une production et une ingénierie à distance faciles et un coût inférieur pour les systèmes à emplacements multiples.
Équipée d’un objectif zoom de 8,8 à 176 mm (zoom équivalent 35 mm de 24,5 à 490 mm), d’un zoom optique 20x, d’un zoom numérique 10x et d’un iZoom 32x, cette caméra tourelle vous permet de zoomer sur l’activité dans la zone surveillée pour un examen plus approfondi. Elle dispose du mode nuit et offre des performances de haute qualité dans des situations de faible luminosité avec peu ou pas de bruit.
Les autres fonctionnalités de la Panasonic AW-HE145 incluent la balance des blancs automatique, le contrôle série RS-422, l’entrée Genlock, la plage de panoramique de 175°, la plage d’inclinaison de -30 à 90°, la compression vidéo H.265/H.264/MJPEG, le streaming RTSP/RTMP, l’audio AAC-LC compression et un système de filtre ND intégré à 4 niveaux. La caméra prend en charge l’entrée mic et line audio, ce qui vous permet de capturer et d’intégrer l’audio dans le signal vidéo. Elle est également compatible PoE+, ce qui vous permet d’alimenter l’unité à l’aide d’un seul câble LAN.
Une mise à niveau du logiciel de suivi automatique en option permet à la caméra d’utiliser la technologie de reconnaissance faciale pour le suivi du visage et la détection du corps afin que la caméra suive automatiquement le sujet dans la pièce. Si vous utilisez un réseau compatible NDI, vous pouvez également acheter une licence NDI|HX en option pour transmettre des flux vidéo NDI|HX de haute qualité et à faible bande passante.
Points forts de la caméra PTZ AW-HE145
- Capteur MOS Full HD 1″
- Zoom optique 20x, Zoom numérique 10x, iZoom 32x
- Sortie vidéo HDMI/3G-SDI/IP, entrée micro 3,5 mm
- Diffusion vidéo RTMP/SRT
- Angle de vue de 75,1°, rapport S/B de 60 dB
- Mode nuit, filtre ND, voyant de signalisation
- Contrôle série RS-422
- Licence NDI|HX (en option)
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| Camera Unit | |
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
|---|---|
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, –99 % to 99 % |
|---|---|
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input | |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Output | |
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| Input/Output |
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| Camera Unit | |
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, –99 % to 99 % |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input | |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Output | |
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| Input/Output | |
| Input/Output Connector | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| Pan-Tilt Head Unit | |
| Camera/Pan-Tilt Head Control | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 |
| Pan/Tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| Panning Range | ±175° |
| Tilting Range | –30° to 210°*9 |
| Quietness | NC35 or less |
| Supported Operating Systems and Web Browsers*10 | |
|---|---|
| Supported operating systems and web browsers | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP Streaming | |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 |
| Image Resolution | |
| 1920x1080, 1280x720, 640x360, 320x180 |
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| Camera Unit | |
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, –99 % to 99 % |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input | |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Output | |
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| Input/Output | |
| Input/Output Connector | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| Pan-Tilt Head Unit | |
| Camera/Pan-Tilt Head Control | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 |
| Pan/Tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| Panning Range | ±175° |
| Tilting Range | –30° to 210°*9 |
| Quietness | NC35 or less |
| Supported Operating Systems and Web Browsers*10 | |
| Supported operating systems and web browsers | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP Streaming | |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 |
| Image Resolution | |
| 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting | JPEG Frame Rate: Maximum 30 fps, Image quality (Fine / Normal) H.264 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps H.265 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps NDI|HX Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.264 Transmission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.265 Transimission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps RTMP/RTMPS Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| Camera Unit | |
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, –99 % to 99 % |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input | |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Output | |
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| Input/Output | |
| Input/Output Connector | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| Pan-Tilt Head Unit | |
| Camera/Pan-Tilt Head Control | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 |
| Pan/Tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| Panning Range | ±175° |
| Tilting Range | –30° to 210°*9 |
| Quietness | NC35 or less |
| Supported Operating Systems and Web Browsers*10 | |
| Supported operating systems and web browsers | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP Streaming | |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 |
| Image Resolution | |
| 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting | JPEG Frame Rate: Maximum 30 fps, Image quality (Fine / Normal) H.264 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps H.265 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps NDI|HX Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.264 Transmission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.265 Transimission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps RTMP/RTMPS Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported Protocol | IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP |
| Other Function | |
| NDI Support*11 | NDI | HX |
| Tally LED display color | red / green |
