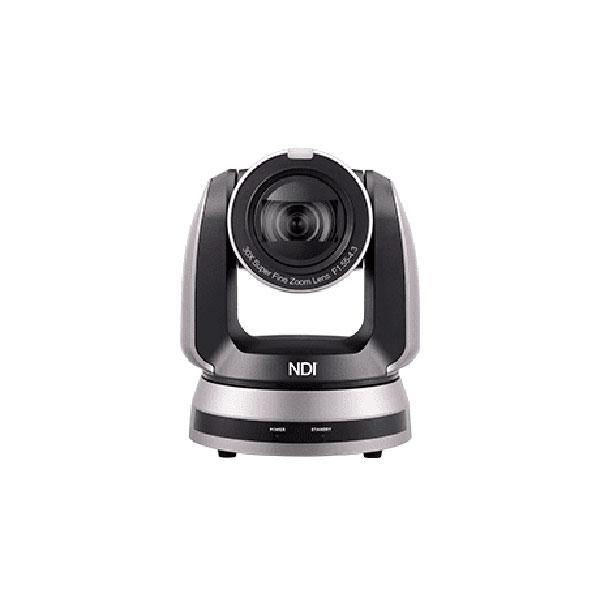

Lumens VC-A71P-HN (Noir) – Caméra PTZ broadcast
5 199,00 € HT 6 238,80 € TTC
| Couleur: |
Sur commande
Présentation Lumens VC-A71P-HN (Noir)
La caméra Lumens VC-A71P-HN (Noir) PTZ 4K est équipée d’un 30x zoom optique en 60ips. Elle prend en charge la dernière version du protocole NDI ®, le NDI | HX3. Elle est idéale pour les projets broadcast. Elle est équipée de deux ports SDI (12G et 3G), ainsi que d’un connecteur Genlock qui permet la synchronisation des équipements lors de la diffusion.
Points forts VC-A71P-HN (Noir)
– 4K 60 fps, zoom optique 30x, capteur 1/1.8
– 12G-SDI / 3G-SDI / 12G-SDI / IP / USB
– Support Genlock
– Prise en charge Rec.709 / BT.2020
– Prise en charge complète de NDI / NDI|HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT
– Protocole FreeD pour la production VR/AR en direct
– Prise en charge 802.1x
| Output | ||
| HDMI / 12G-SDI | 2160p 59.94fps | |
|
IP Stream |
NDI :
HEVC 4K59.94fps H.264 640×360 29.97fps or RTSP : HEVC 4K 59.94fps H.264 1080p 59.94fps H.264 640×360 29.97fps |
|
| IP Compression | HEVC / H.264 | |
|
USB Output |
H.264 4K30fps MJPEG 1080p 30fps | |
| USB Compression | H.264 / MJPEG | |
| Network | ||
|
IP Protocol |
NDI High Bandwidth / NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT | |
| PoE | PoE++ (IEEE802.3bt) | |
| Audio | ||
| Input | Line In/MIC In , Phone Jack 3.5mm x1 | |
| Output | Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 / USB 3.0 | |
|
Compression Format |
IP : G.711 USB : PCM | |
| Camera Control | ||
| Interface | RS-232 / RS-422 / Ethernet / USB 3.0 / Remote | |
| Protocol | VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC | |
| General | ||
| DC In | 12V +/- 20% | |
| Power Consumption | PoE : 40W DC In : 40W | |
| Weight | 6.6 lbs (3 kg) | |
|
Dimensions |
9.1″ x 7.4″ x 7.4″
(232 x 188 x 189mm ) |
|
| Camera | ||
| Sensor | 1/1.8″ 9.17 MP CMOS | |
|
Video Format |
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25 1080i: 59. 94 / 50 720p: 59.94 / 50 |
|
| Video Output Interface | HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0 | |
| Genlock | Yes | |
| Optical Zoom | 30x | |
| Digital Zoom | 12x | |
| Horizontal Viewing Angle | 63° (Wide) to 3.7° (Tele) | |
| Vertical Viewing Angle | 35.4° (Wide) to 2.1° (Tele) | |
| Diagonal Viewing Angle | 72.3° (Wide) to 4.2° (Tele) | |
| Aperture | F1.6 ~ F4.8 | |
| Focal Length | 6.5mm ~ 202mm | |
| Shutter Speed | 1/1 ~ 1/10,000 sec | |
| Minimum Object Distance | 1.5m (Wide / Tele) | |
| Video S/N Ratio | > 50dB | |
| Minimum Illumination | 0.05 lux (F1.6, 50IRE, 30fps) | |
| Focus System | Auto / Manual / Smart AF | |
| Gain Control | Auto / Manual | |
| White Balance | Auto / Manual | |
| Exposure Control | Auto / Manual | |
| WDR | Yes | |
| 3D NR | Yes | |
| Image Flip | Yes | |
| Color Space | Standard / BT.2020 / REC.709 | |
| AR/VR Systems | FreeD | |
| Tally Light | Yes | |
| Pan & Tilt | ||
| Panning Angle | +170° ~ -170° | |
| Panning Speed | 0.01 ~ 300°/sec | |
| Tilting Angle | +90° ~ -30° | |
| Tilting Speed | 0.01 ~ 300°/sec | |
| Preset Positions | 256 | |
