JVC KY-PZ400N avec NDI|HX (Noire) – Caméra PTZ
1 895,00 € Le prix initial était : 1 895,00 €.1 560,75 €Le prix actuel est : 1 560,75 €. HT 1 872,90 € TTC
| Couleur: Noir |
|
En stock (dernières pièces)

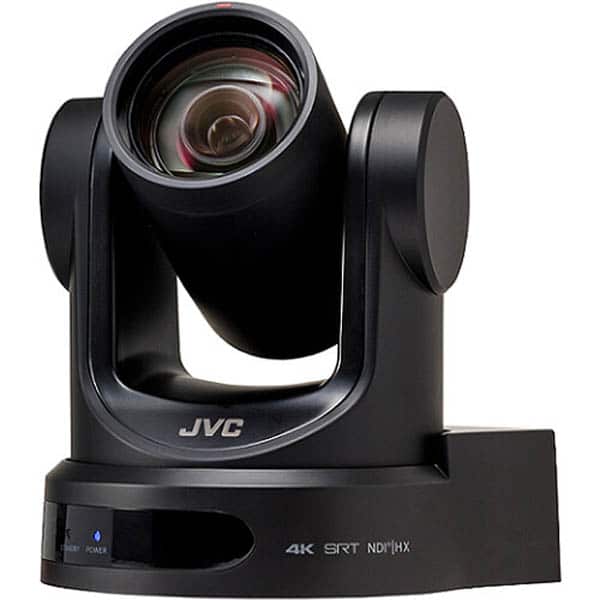

Présentation de la JVC KY-PZ400N avec NDI|HX (Noire)
La JVC KY-PZ400N avec NDI|HX (Noire) est une caméra PTZ qui offre des résolutions jusqu’à 4K UHD 2160p30, un capteur CMOS 4K 1/2,5″ et un objectif zoom optique 12x intégré avec zoom numérique 16x pour capturer des images nettes. La caméra offre plusieurs options de sortie vidéo, notamment HDMI, 3G-SDI, USB Type-B, NDI|HX et streaming IP. En plus de la capture vidéo HDMI jusqu’à 4K UHD et 3G-SDI jusqu’à 1080p60, la caméra s’intégrera parfaitement dans votre réseau NDI et communiquera avec d’autres applications et matériels NDI à l’aide du protocole NDI|HX haute compression et de haute qualité.
La caméra KY-PZ400N prend en charge la compression H.264/H.265 et transmet des flux vidéo IP à l’aide des protocoles SRT, RTSP, RTMP et HTTP. Vous pouvez régler la caméra pour qu’elle se déplace rapidement d’une position à l’autre à l’aide du contrôle IP RS-485 ou RS-232 avec des contrôleurs série disponibles séparément, ou vous pouvez utiliser la télécommande IR incluse. La KY-PZ400N dispose d’une entrée et d’une sortie audio analogiques de 3,5 mm. La synchronisation VITC et NTP est également prise en charge pour les productions multi-caméras des événements nécessitant une synchronisation de timecode et d’horloge en temps réel. La caméra peut être alimentée à l’aide de l’adaptateur secteur inclus ou à l’aide de PoE (Power-over-Ethernet) sur un réseau pris en charge. Un support de plafond est inclus et vous pouvez retourner l’image de la caméra lorsqu’elle est montée à l’envers.
Points forts de la KY-PZ400N
- Capteur CMOS 4K 1/2,5″
- Zoom optique 12x
- Résolution jusqu’à 3840 x 2160p30
- Sortie vidéo HDMI/3G-SDI et NDI|HX
- 255 préréglages, entrée/sortie audio stéréo 3,5 mm
- Contrôle série RS-232/RS-485, en cascade
- Prend en charge la compression H.264/H.265/MJPEG
- Prend en charge les protocoles RTSP, RTMP, SRT, HTTP
- Encodage audio AAC et G712 intégré
- Prise en charge de la synchronisation VITC et NTP
|
Model |
KY-PZ400NBU(Black) /WU(White) |
KY-PZ200NBU(Black) /WU(White) |
KY-PZ200BU(Black) /WU(White) |
|
Description |
4K PTZ REMOTE CAMERA with NDI HX |
HD PTZ REMOTE CAMERA with NDI HX |
HD PTZ REMOTE CAMERA |
|
Camera Section |
|||
|
Sensor |
1/2.5 inch, CMOS, effective pixels：8.51M |
1/2.8 inch, CMOS, effective pixels：2.07M |
1/2.8 inch, CMOS, effective pixels：2.07M |
|
Scanning Mode |
Progressive |
Progressive |
Progressive |
|
Lens |
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
|
Digital Zoom |
16x |
8x |
8x |
|
Minimal Illumination |
0.5Lux @ (F1.8, AGC ON) |
0.5Lux @ (F1.8, AGC ON) |
0.5Lux @ (F1.8, AGC ON) |
|
Shutter |
1/30s ~ 1/10000s |
1/30s ~ 1/10000s |
1/30s ~ 1/10000s |
|
White Balance |
Auto, indoor，outdoor，one push，manual |
Auto, indoor，outdoor，one push，manual |
Auto, indoor，outdoor，one push，manual |
|
Backlight Compensation |
Supported |
Supported |
Supported |
|
Digital Noise Reduction |
3D digital noise reduction |
3D digital noise reduction |
3D digital noise reduction |
|
Horizontal Angle of View |
71° ~ 8.2° |
60.7° ~ 3.36° |
60.7° ~ 3.36° |
|
Vertical Angle of View |
42.7° ~ 4.5° |
34.1° ~ 1.89° |
34.1° ~ 1.89° |
|
Horizontal Rotation Range |
±170° |
±170° |
±170° |
|
Vertical Rotation Range |
-30° ~ +90° |
-30° ~ +90° |
-30° ~ +90° |
|
Pan Speed Range |
1.7° ~ 100°/s |
1.7° ~ 100°/s |
1.7° ~ 100°/s |
|
Tilt Speed Range |
1.7° ~ 69.9°/s |
1.7° ~ 69.9°/s |
1.7° ~ 69.9°/s |
|
H & V Flip |
Supported |
Supported |
Supported |
|
Image Freeze |
Supported |
Supported |
Supported |
|
PoE |
Supported |
Supported |
Supported |
|
Number of Preset |
255 |
255 |
255 |
|
Preset Accuracy |
0.1° |
0.1° |
0.1° |
|
USB Features |
|||
|
Operate System |
N/A |
Windows 8, Windows 10, Mac OS X, Linux, Android |
Windows 8, Windows 10, Mac OS X, Linux, Android |
|
Color System / Compression |
N/A |
Uncompressed / H.264 / MJPEG |
Uncompressed / H.264 / MJPEG |
|
Video Format |
N/A |
Uncompressed YUV : max up to 1080P@30fps |
Uncompressed YUV : max up to 1080P@30fps |
|
H.264 AVC: max up to 1080P@60fps |
H.264 AVC: max up to 1080P@60fps |
||
|
H.264 SVC: max up to 1080P@60fps |
H.264 SVC: max up to 1080P@60fps |
||
|
MJPEG: max up to 1080P@60fps |
MJPEG: max up to 1080P@60fps |
||
|
Audio on USB |
N/A |
Supported |
Supported |
|
USB Video Communication Protocol |
N/A |
UVC 1.1~1.5 |
UVC 1.1~1.6 |
|
UVC PTZ |
N/A |
Supported |
Supported |
|
Internet Features |
|||
|
Video Compression |
H.265/H.264/MJPEG |
H.265/H.264/MJPEG |
H.265/H.264/MJPEG |
|
Video Stream |
Main stream, sub stream |
Main stream, sub stream |
Main stream, sub stream |
|
Main Stream Resolution |
3840×2160, 1920×1080, 1280×720, 1024×576, etc. |
1920×1080, 1280×720, 1024×576, etc. |
1920×1080, 1280×720, 1024×576, etc. |
|
Sub Stream Resolution |
720×576, 720×480, 320×240, etc. |
720×576, 720×480, 320×240, etc. |
720×576, 720×480, 320×240, etc. |
|
Video Bit Rate (H264,H265) |
Max 60Mbps |
Max 58Mbps |
Max 58Mbps |
|
Bit Rate Type |
Variable Rate, Fixed Rate |
Variable Rate, Fixed Rate |
Variable Rate, Fixed Rate |
|
Frame Rate |
50Hz: 1fps~50fps, 60Hz:1fps~60fps |
50Hz: 1fps~50fps, 60Hz:1fps~60fps |
50Hz: 1fps~50fps, 60Hz:1fps~60fps |
|
Audio Compression |
AAC、G711 |
AAC、G711 |
AAC、G712 |
|
Audio Bit Rate |
96Kbps, 128Kbps |
96Kbps, 128Kbps, 256Kbps |
96Kbps, 128Kbps, 256Kbps |
|
Supported Protocols |
NDI®|HX, SRT, HTTP, RTSP, RTMP/RTMPS, (Standard IP control protocol) |
NDI®|HX, SRT, HTTP, RTSP, RTMP/RTMPS, (Standard IP control protocol) |
SRT, HTTP, RTSP, RTMP/RTMPS, (Standard IP control protocol) |
|
SRT Mode |
Listener, Caller |
Listener, Caller |
Listener, Caller |
|
Output |
HDMI: version 1.4 |
HDMI: version 1.4 |
HDMI: version 1.4 |
|
HDMI video formats: |
HDMI video formats: |
HDMI video formats: |
|
|
3840×2160 30p/29.97p/25p |
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
|
|
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
1920×1080 60i/59.94i/50i |
1920×1080 60i/59.94i/50i |
|
|
1920×1080 60i/59.94i/50i |
1280×720 60p/59.94p/50p/25p |
1280×720 60p/59.94p/50p/25p |
|
|
1280×720 60p/59.94p/50p/25p |
|||
|
3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
|
|
3G-SDI video formats: |
3G-SDI video formats: |
3G-SDI video formats: |
|
|
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
1920×1080 60p/59.94p/50p/30p/29.97p/25p |
|
|
1920×1080 60i/59.94i/50i |
1920×1080 60i/59.94i/50i |
1920×1080 60i/59.94i/50i |
|
|
1280×720 60p/59.94p/50p |
1280×720 60p/59.94p/50p |
1280×720 60p/59.94p/50p |
|
|
Network Interface |
RJ45: 10M/100M/1000M Ethernet Interface |
RJ45: 10M/100M/1000M Ethernet Interface |
RJ45: 10M/100M/1000M Ethernet Interface |
|
Audio Interface |
Line In:3.5mm audio interface |
Line In:3.5mm audio interface |
Line In:3.5mm audio interface |
|
Line Out: 3.5mm audio interface |
Line Out: 3.5mm audio interface |
Line Out: 3.5mm audio interface |
|
|
USB |
USB2.0, A type (for maintenance) |
USB2.0, A type (for maintenance) |
USB2.0, A type (for maintenance) |
|
USB3.0, B type |
USB3.0, B type |
||
|
Communication Interface |
RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol |
RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol |
RS232 In: 8pin Min DIN, Max Distance: 30m, (Standard)/Pelco-D/Pelco-P Protocol |
|
RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol) |
RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol) |
RS232 Out: 8pin Min DIN, Max Distance: 30m, (Standard Protocol) |
|
|
RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol |
RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol |
RS485: 2pin Phoenix Port, Max Distance: 1200m, (Standard)/Pelco-D/Pelco-P Protocol |
|
|
Power Jack |
DC IN 12V |
DC IN 12V |
DC IN 12V |
|
Others |
|||
|
VITC synchronization via NTP in Time code |
Supported |
Supported |
Supported |
|
Remote controller |
Supported |
Supported |
Supported |
|
General Features |
|||
|
Installation |
Normal, upside-down |
Normal, upside-down |
Normal, upside-down |
|
RESTORE button |
Supported |
Supported |
Supported |
|
Standby Function |
Supported |
Supported |
Supported |
|
LED |
Tally : 1x Red/Green |
N/A |
N/A |
|
Power : 1x Blue |
Power : 1x Blue |
Power : 1x Blue |
|
|
Standby : 1x Yellow-green |
Standby : 1x Yellow-green |
Standby : 1x Yellow-green |
|
|
Input Voltage |
DC 12V, Max 1.5A |
DC 12V, Max 1.5A |
DC 12V, Max 1.5A |
|
POE supply |
802.3af standard |
802.3af standard |
802.3af standard |
|
Operating Temperature |
0°C ~ 40°C |
0°C ~ 40°C |
0°C ~ 40°C |
|
Storage Temperature |
-40°C ~ 60°C |
-40°C ~ 60°C |
-40°C ~ 60°C |
|
Power Consumption |
Max 12W |
Max 12W |
Max 12W |
|
Size |
D6.7 inch x W5.6 inch x H6.5 inch |
D6.7 inch x W5.6 inch x H6.5 inch |
D6.7 inch x W5.6 inch x H6.5 inch |
|
Net Weight |
3.7 lbs. |
3.7 lbs. |
3.7 lbs. |
|
Included Accessories |
|||
|
AC Power Adapter x1 |
AC Power Adapter x1 |
AC Power Adapter x1 |
|
|
Power Cable x1 |
Power Cable x1 |
Power Cable x1 |
|
|
RS232 Cable x1 |
RS232 Cable x1 |
RS232 Cable x1 |
|
|
IR Remote Control x1 |
IR Remote Control x1 |
IR Remote Control x1 |
|
|
User Manual x1 |
User Manual x1 |
User Manual x1 |
|
|
Ceiling Bracket x1 |
Ceiling Bracket x1 |
Ceiling Bracket x1 |
|
|
Logo Sticker x2 |
Logo Sticker x2 |
Logo Sticker x2 |
|
|
Warranty Card x1 |
Warranty Card x1 |
Warranty Card x1 |
|
|
*Specifications subject to change. |
|||
