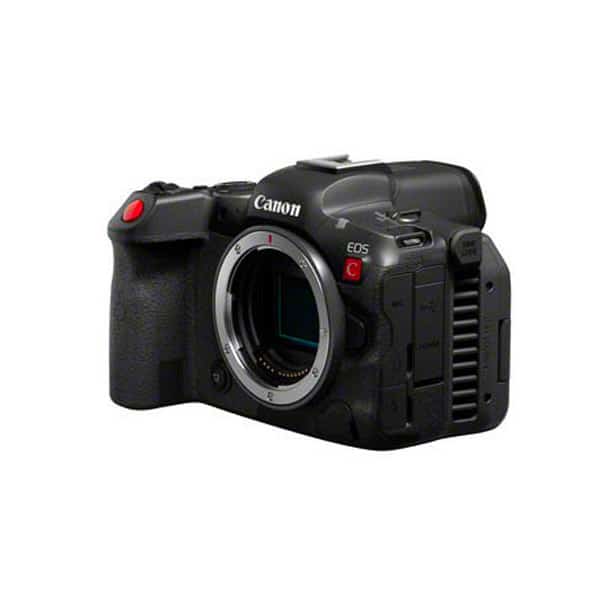

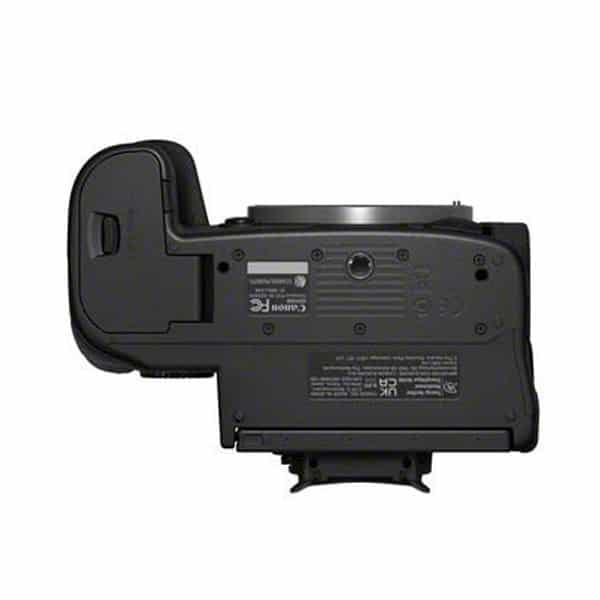

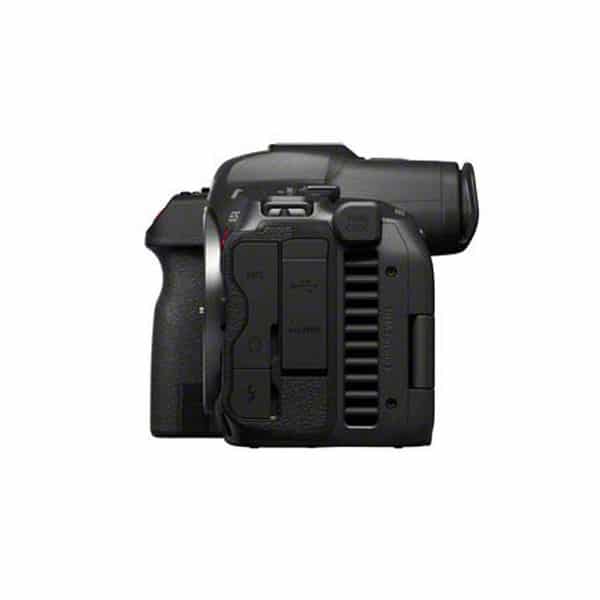

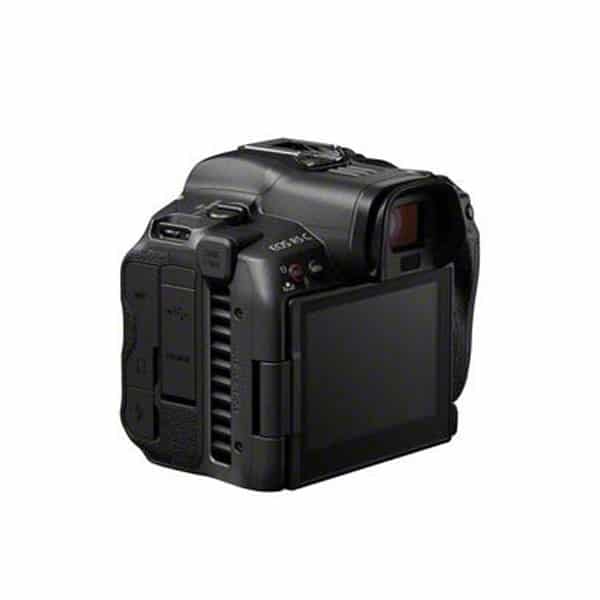

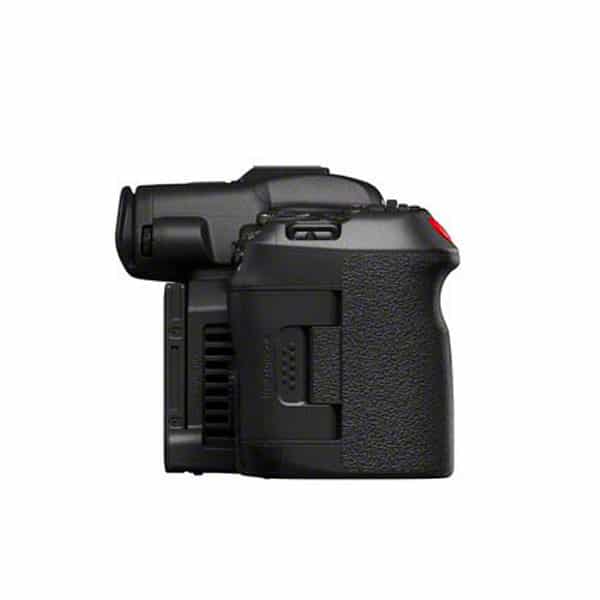

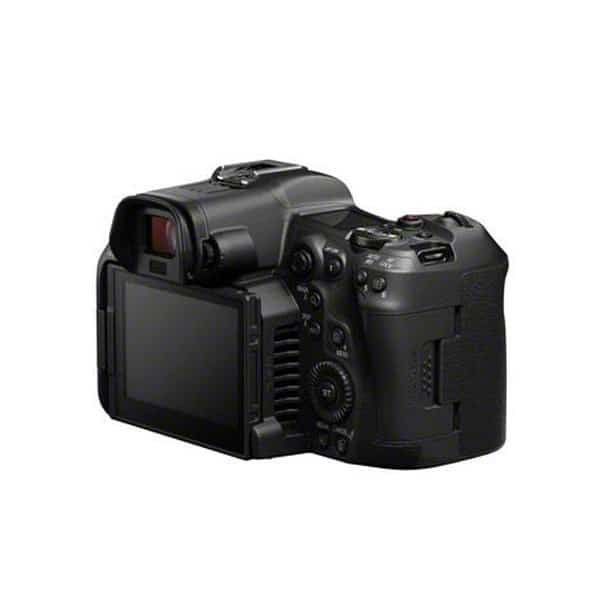

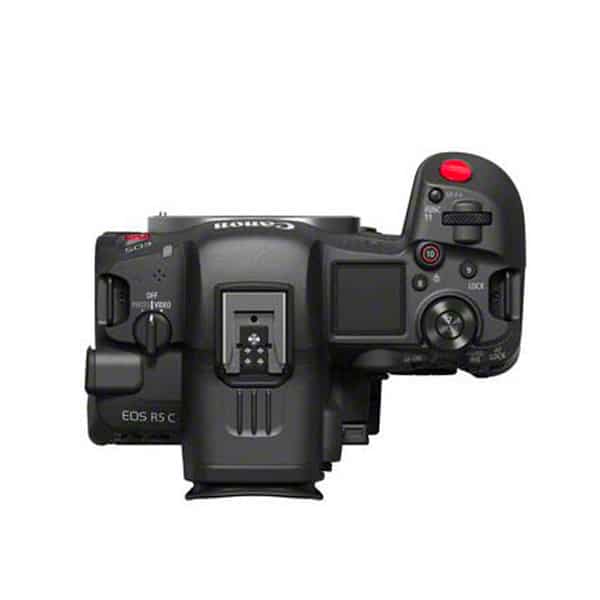

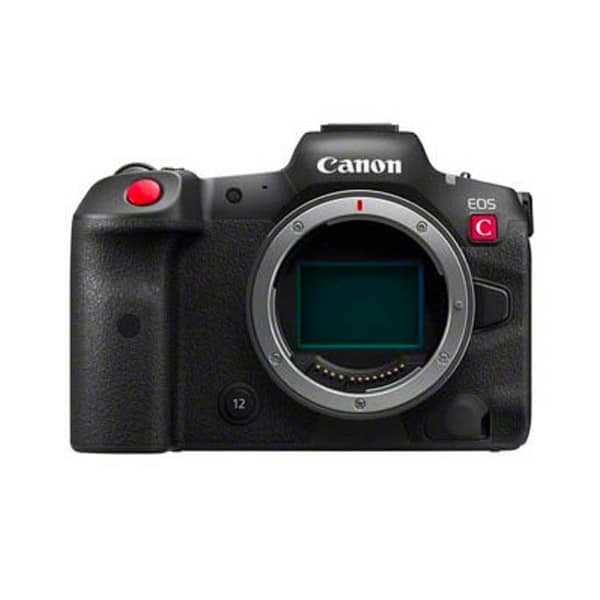

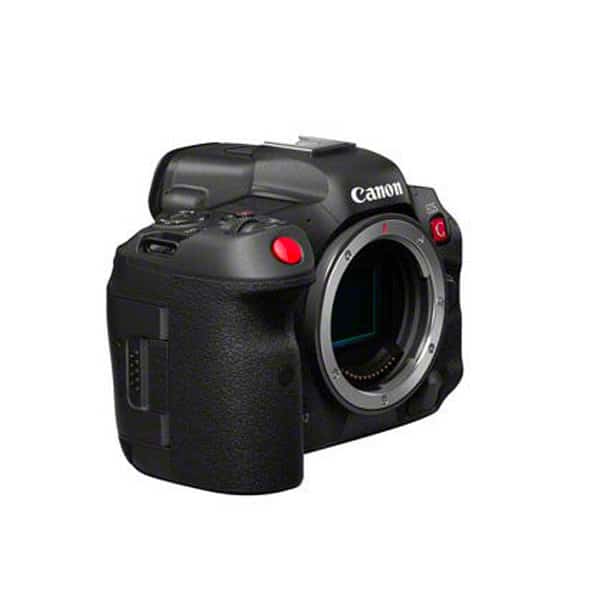

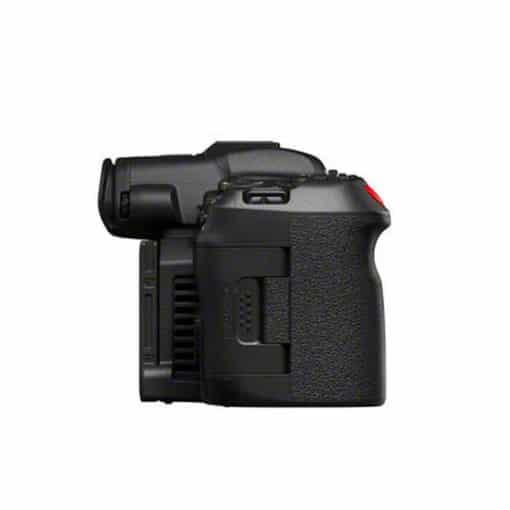

Canon EOS R5 C – Camera Cinema

IMAGE SENSOR

Image Sensor Type : 3:2 Full Frame CMOS sensor (36 x 24mm)

System : RGB primary colour filter (Bayer array)

Sensor Modes : Full Frame (8K) / Super 35mm(Crop) / Super 16mm

(Crop)

Total Pixels : Approx. 47.10megapixels

Effective Pixels : Video Mode:

Approx. 35.40megapixels (8192 x 4320):When

resolution is 8192 x 4320, 4096 x 2160, or 2048 x 1080

Approx. 33.20megapixels (7680 x 4320):When

resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080

Photo Mode:

Approx. 45 megapixels (8192 x 5464)

Effective Sensor Screen Size : 36.0 x 19.0mm(40.7mm on the diagonal): When

resolution is 8192 x 4320, 4096 x 2160 or 2048 x 1080

33.8 x 19.0mm(38.8mm on the diagonal): When

resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080

Dynamic Range : Canon Log 3: 1600% / 14 stops (at ISO 800)

Wide DR: 800%(at ISO 400)



IMAGE PROCESSOR

Image Processor Type : DIGIC X



LENS

Lens Mount : Canon RF mount

Compatible lenses: All RF lenses and EF lenses

(includes EF-S lenses/EF cinema lenses)

Lens Magnification Factor Full Frame:

Actual focal length x approx. 1.0

Super 35mm(Crop):

5952×3140, 4096×2160 or 2048×1080 resolution: Actual

focal length x approx. 1.460

3840×2160, 1920×1080 or 1270×720 resolution: Actual

focal length x approx. 1.534

Super 16mm(Crop):

In 2976×1570 or 2048×1080 resolution: Actual focal

length x approx. 2.920

In 1920×1080 or 1270×720 resolution: Actual focal

length x approx. 3.069

Peripheral Illumination Correction : Yes

Chromatic Aberration Correction : Yes

Distortion Correction : Yes, RF Mount lenses only

Diffraction Correction : Yes

ND Filter : No

Focus Control Via lens, Browser Remote, Camera Connect or EOS

Utility

Iris Control 1/2-stop, 1/3-stop or FINE control

Cooke/I technology Support No

Anamorphic Lens Support Yes, x2.0 / x1.8 / x1.3

Image Stabilization System Yes, 5-axis Electronic IS. Coordinates with supported

lenses featuring optical-IS for optimal performance



RECORDING

Internal Recording Media 1x CFexpress card (CFexpress 2.0 Type B)

1x SD card (SD/SDHC/SDXC)

(SD Card recording available at bitrates up to 650

Mbps)

Recording Time[1] Cinema RAW Light LT: 8192 x 4320 1070Mbps: 63 Mins

Cinema RAW Light ST: 8192 x 4320: 1650Mbps 41 Mins

Cinema RAW Light HQ: 5952 x 3140: 1770Mbps 38

Mins

XF-AVC / MXF: 4096×2160: 410 Mbps 156Mins

MP4 (HEVC): 4096×2160: 225 Mbps 285 Mins

MP4 (H.264): 4096×2160: 150 Mbps 428 Mins

Recording Formats Video Mode:

Cinema RAW Light (CRM): 12-bit RAW

XF-AVC (MXF):4:2:2 10-bit (ALL-I or Long GOP)

HEVC (MP4): 4:2:2 10-bit / 4:2:0 10-bit

H.264 (MP4): 4:2:0 8-bit

Photo Mode:

RAW / C-RAW / Dual Pixel RAW[1] / HEIF[2] / JPEG

Relay Recording Yes

Double Slot Recording Yes

Simultaneous Recording Yes, in Dual Recording Mode

Options Available: [CRL / XF-AVC / MP4] [All-I / Long

GOP] [4:2:2 10-bit / 4:2:0 10-bit / 4:2:0 8-bit] [8K / 4K /

2K / FHD]

System Frequency Frame

Rates

59.94Hzmode (59.94P / 59.94i / 29.97P / 23.98P)

50.00Hzmode (50.00P / 50.00i / 25.00P)

24.00 Hz mode (24.00P)

Cinema RAW Light 12-bit Cinema RAW Light LT:

8192 x 4320 / 50P / 2140Mbps: approx. 31 Mins

8192 x 4320 / 25P / 1070Mbps: approx. 63 Mins

5952 x 3140 / 50P / 1140Mbps: approx. 59 Mins

5952 x 3140 / 25P / 556Mbps: approx. 122 Mins

2976 x 1570 / 50P / 287Mbps: approx. 237 Mins

2976 x 1570 / 25P / 144Mbps: approx. 474 Mins

12-bit Cinema RAW Light ST:

8192 x 4320 / 25P / 1650Mbps: approx. 41 Mins

5952 x 3140 / 50P / 1750Mbps: approx. 39 Mins

5952 x 3140 / 25P / 871Mbps: approx. 78 Mins

2976 x 1570 / 50P / 441Mbps: approx. 154 Mins

2976 x 1570 / 25P / 221Mbps: approx. 308 Mins

12-bit Cinema RAW Light HQ:

5952 x 3140 / 25P / 1770Mbps: approx. 38 Mins

2976 x 1570 / 50P / 896Mbps: approx. 76 Mins

2976 x 1570 / 25P / 448Mbps: approx. 152 Mins

XF-AVC Recording Bit

Rate/Sampling (PAL)

4:2:2 10-bit (Intra-frame):[5]

4096×2160 or 3840×2160 / 50P / 810 Mbps: approx. 79

Mins

4096×2160 or 3840×2160 / 25P / 410 Mbps: approx. 156

Mins

2048×1080 or 1920×1080 / 50P or 50i / 310 Mbps:

approx. 207 Mins

2048×1080 or 1920×1080 / 25P / 160 Mbps: approx. 401

Mins

4:2:2 10-bit (Long GOP):

4096×2160 or 3840×2160 / 50P / 260 Mbps: approx. 246

Mins

4096×2160 or 3840×2160 / 25P / 160 Mbps: approx. 401

Mins

2048×1080 or 1920×1080 / 50P or 50i / 50 Mbps:

approx. 1284Mins

2048×1080 or 1920×1080 / 25P / 50 Mbps: approx. 1284

Mins

MP4 Recording Bit Rate/

Sampling (PAL)

HEVC 4:2:2 10-bit (Long GOP):[4]

8192×4320 or 7680×4320 / 25P / 540 Mbps: approx. 118

Mins

4096×2160 or 3840×2160 / 50P / 225 Mbps: approx. 285

Mins

4096×2160 or 3840×2160 / 25P / 135 Mbps: approx. 475

Mins

2048×1080 or 1920×1080 / 50P or 25P / 50Mbps:

approx. 1284Mins

HEVC 4:2:0 10-bit (Long GOP):

8192×4320 or 7680×4320 / 25P / 400 Mbps: approx. 160

Mins

4096×2160 or 3840×2160 / 50P / 170 Mbps: approx. 377

Mins

4096×2160 or 3840×2160 / 25P / 100 Mbps: approx. 642

Mins

2048×1080 or 1920×1080 / 50P or 25P / 35Mbps:

approx. 1834Mins

H.264 4:2:0 8-bit (Long GOP):

4096×2160 or 3840×2160 / 50P or 25P / 150Mbps:

approx. 428 Mins

2048×1080 or 1920×1080 / 50P or 25P / 35Mbps:

approx. 1834Mins

Proxy Recording Bit

Rate/Sampling (PAL)

XF-AVC 4:2:0 8-bit (Long GOP)

2048 X 1080 or 1920 x 1080 / 50P / 35 Mbps

2048 X 1080 or 1920 x 1080 / 25P / 24 Mbps

H.264MP4 4:2:0 8-bit (Long GOP)

2048 X 1080 or 1920 x 1080 / 50P or 25P / 9 Mbps

Slow Fast Motion 8K recording up to 30FPS (60FPS with external power)

4K / FHD recording: up to 120FPS

Audio recording and auto-focus options available.

Interval Record Yes

Frame Record Yes

Pre Record Yes, 3 seconds (XF-AVC or MP4 recording only)

Photo Recording Size 3:2 ratio:

(L, RAW, C-RAW) 8192×5464, (M1) 5808×3872, (S1)

4176×2784, (S2) 2400×1600

1.6x (crop):

(L) 5088×3392, (S2) 2400×1600

4:3 ratio:

(L) 7280×5464, (M1) 5152×3872, (S1) 3712×2784, (S2)

2112×1600

16:9 ratio:

(L) 8192×4608, (M1) 5808×3264, (S1) 4176×2344, (S2)

2400×1344

1:1 ratio:

(L) 5456×5456, (M1) 3872×3872, (S1) 2784×2784, (S2)

1600×1600



SYSTEM

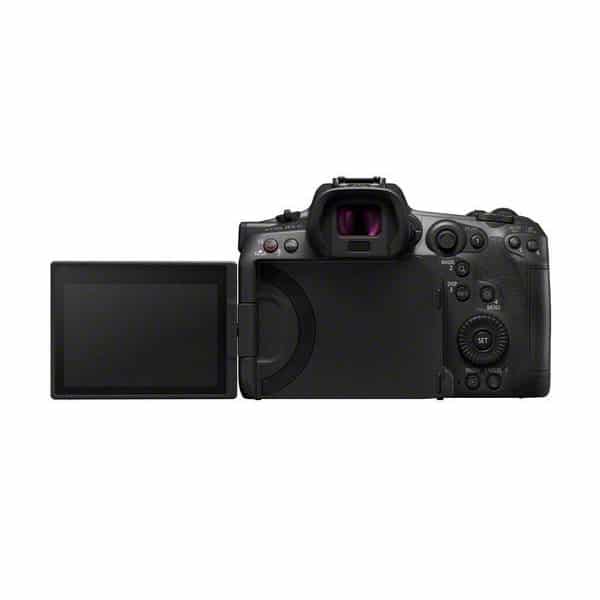

Display Type 3.2 inch 3:2 LCD Touch Panel

Display Resolution 2.1million dots

Display Touch Screen

Functions

Focus point selection, Shooting setting adjust,

Start/Stop recording (activated via Menu)

OSD Vertical Shooting Yes, 90-degree rotation

Wave Form Monitor Yes. LCD, EVF or HDMI

False Colour Display Yes. LCD, EVF or HDMI (Use of viewing LUT will affect

false colour display)

Colour Bars SMPTE, EBU and ARIB

Peaking Peaking 1, Peaking 2 (Colour, Gain, Frequency

customisable)

Zebra Level 1; Level 2; Both

Output via HDMI: Yes

Markers On/Off selectable: centre, horizontal, grid, aspect,

safety zone, rectangular and user marker. Colour

selectable, yellow, blue, green, red, black, grey or

white.

EVF

Built In EVF 0.5-inch OLED colour EVF, 5.76million dots

Optional EVF Accessory N/A

INPUTS / OUTPUTS

Audio In 1x 3.5mmmic input

1x Built-in monomicrophone

(XLR input available via TASCAM CA-XLR2d-C

accessory)

Headphone Output 1x 3.5mmstereo output

Video Monitor Output No

HDMI 1x micro-HDMI (8K RAW output available)[5]

USB 1x USB-C (3.2 Gen1) for power, charging and

communication (UVC Video output / Content

Transfer Mobile App)

SDI Output No

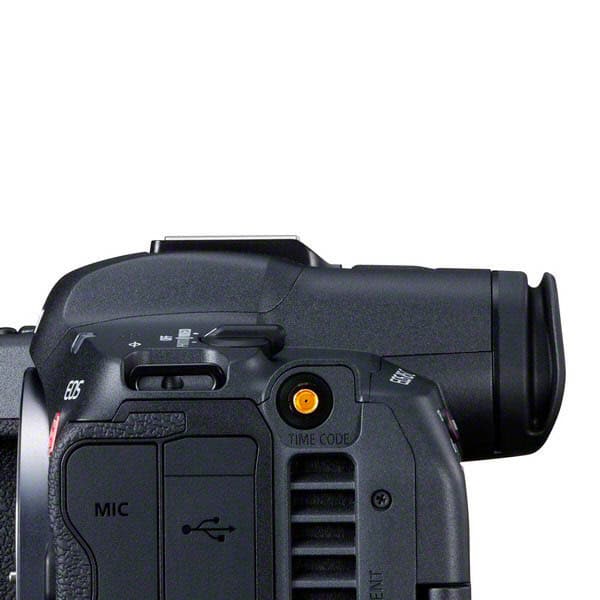

Time Code 1x DIN 1.0/2.3 (Input/Output)

Genlock No

Sync 1x Flash Sync

DC Output No

DC Input Yes, via DR-E6C DC Coupler

Remote Control Terminal 1x N3-type terminal

Wireless Control Terminal Available via WFT-R10 Accessory

Lens Terminal No

Ethernet Terminal Available via WFT-R10 Accessory

IP Streaming FTP Yes, available via WFT-R10 Accessory

Protocol: UDP, RTP and RTP+FEC

Use LUT Input Yes, in-built LUTs/View Assist available for

LCD/EVF/HDMI Monitoring.

Custom LUTs can be applied directly to internal

recordings via Look File function (compatible with 17

or 33 grid .cube files).

Video Connector No

Default Function Button

Settings

1. One-Shot AF

2. Magnification

3. DISP

4. Menu

5. Push Auto Iris

6. AF lock

7. Assignable Button Menu

8. Display Panel Info

9. Key Lock

10. (Unassigned)

11. FUNC

12. (Unassigned)

13. Set White Balance

User Assignable Buttons 13 Assignable buttons (numbered) on camera

body. In excess of 80 options via the menu



MISCELLANEOUS

Tally Lamp Yes

CustomDial 3x Electronic Dials + Multi-controller



EXPOSURE

Exposure Metering Video Mode:

Standard, Backlight, Spotlight

Photo Mode:

Evaluative, Partial, Spot, Centre Spot, AF-point

Linked, Centre weighted average

Exposure Compensation Yes

Auto Exposure Mode Yes (Video mode: Auto Iris / ISO)

Push Auto Iris Yes

Exposure Lock Yes

Auto Gain Control Setting Yes

ISO Sensitivity Video Mode:

ISO 100 to ISO 25,600 / 102,400* (increments of 1 or

1/3 stop)

* When the sensitivity is expanded

Photo Mode:

ISO 100 to ISO 51,200 / 102,400* (increments of 1 or

1/3 stop)

* When the sensitivity is expanded

Auto Focus System Video Mode:

Dual Pixel CMOS AF with Eye AF and EOS iTR AF X

Photo Mode:

Dual Pixel CMOS AF II

AF Frame Sizes Large; size equivalent to approx. 20% (vertical) x

25% (horizontal) of the image display range

Small; size equivalent to approx. 20% (vertical) x 8%

(horizontal) of the image display range

Whole Area; size equivalent to approx. 80% of

sensor

Auto Focus Modes One-Shot AF, Continuous AF, Continuous AF: Only

Near Focus

Face Detection AF Face Priority, Face Only, Eye AF

Focus Guide For manual focus assist with compatible Canon RF

mount, EF mount, Cine Servo Lenses

Gain Setting -6 dB to 42 dB / 54 dB* (Normal or Fine increments)

* When the sensitivity is expanded



SHUTTER

Control Modes Video Mode:

Off; Speed; Angle; Clear Scan; Slow

Photo Mode:

Mechanical, Elec. 1st-curtain, Electronic

Shutter Speed Video Mode:

1 sec to 1/2000 depending on frame rate and

Shutter Control Mode, 39 setting options

Photo Mode:

30-1/8000 sec (1/2 or 1/3 stop increments)

Bulb (Total shutter speed range. Available range

varies by shooting mode)

Shutter Angle 11.25  to 360  depending on frame rate

Slow Shutter SLS 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending

on frame rate

Clear Scan 24.00 Hz[8] to 250.40 Hz



CUSTOM PICTURE

Stored Configurations Video Mode:

C1: BT.709 Wide DR (BT.709 Gamut)

C2: Canon Log 3 (Cinema Gamut)

C3: PQ (BT.2020 Gamut)

C4: HLG (BT.2020 Gamut)

C5. BT.709 Standard (BT.709 Gamut)

C6. EOS Standard (BT.709 Gamut)

C7. EOS Neutral (BT.709 Gamut)

USER8 to USER20 (Wide DR / BT.709 Gamut)

Photo Mode:

Auto / Standard / Portrait / Landscape / Fine Detail

/ Neutral / Faithful / Monochrome / User Defined

(x3)

Colour Matrix CUSTOM PICTURE: Colour Matrix Phase, Gain and

RGB adjustment, in tandem with Gamma selection

Master Pedestal -50 to +50

Master Black Adjustable for each channel RGB -50 to +50 plus

Master Black -50 to +50

Black Gamma Adjustable Level -50 to +50, Range -20 to +50 and

Point -20 to +50

Low Key Saturation Adjustable: -50 to +50

Knee Point -50 to +109, Slope -35 to +50, Saturation -10 to

+10

Sharpness Adjustment for Level, H Detail Freq., Coring, HV Detail

Balance, Limit, Select, Knee Aperture and Level

dependent sharpness

Noise Reduction Off, On – Three Options: Automatic (ON/OFF) /

Spatial Filter (1-12) / Frame Correlation (1-3)

Skin Detail Off, Low, Middle, High / Hue, Chroma, Area,

Luminance. 32 steps

Selective Noise Reduction Off, Low, Middle, High / Hue, Chroma, Area,

Luminance.

Colour Matrix Phase, Gain and RGB adjustment, in tandem with

Gamma selection

White Balance AWB, USER setting 01(setting range: 2000K to 15000K/

-20CC to +20CC), daylight, tungsten, settings (A/B)

Colour Correction Area selection / area revision of two areas

Setup Level -50 to +50 On/Off

WI-FI & GPS SPECIFICATIONS

WiFi Video Mode:

Requires WFT-R10 Accessory

Supports Browser Remote / Content Transfer Mobile /

IP Streaming

Photo Mode:

Built-in Wireless LAN (IEEE802.11a/b/g/n/ac) (5Ghz

/2.4 GHz), with Bluetooth 4.2 support

Supports EOS Utility / Camera Connect /

image.canon

GPS Requires GP-E2 Accessory

Latitude/Longitude/Elevation, Coordinated Universal

Time (UTC)

WHITE BALANCE

White Balance Auto Yes

White Balance Preset Video Mode:

Daylight (5400K), Tungsten (3200K), Kelvin

(2000K-15000K, 100K intervals), Set A, Set B

Photo Mode:

AWB, Daylight, Shade, Cloudy, Tungsten,

Fluorescent, Flash, Kelvin, Custom

White Balance Matching

White Balance Shift Video Mode:

-9 to +9 (Daylight and Tungsten only)

Photo Mode:

-9 to +9 (Blue/Amber)

-9 to +9 (Magenta/Green)

BLACK BALANCE

Black Balance Adjustment Yes



TIME CODE

Count Up System Regen, RecRun, Free Run, External, Hold (Drop frame

available for some frame rates)

Start Value Setting “00:00:00:00”, Set/Reset selectable



AUDIO

Audio Recording Format Cinema RAW Light or XF-AVC: Linear PCM (24-bit / 48

kHz, 4 channels)

MP4:MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel) /

Linear PCM (16-bit, 48 kHz, 4-channel)



ACCESSORIES

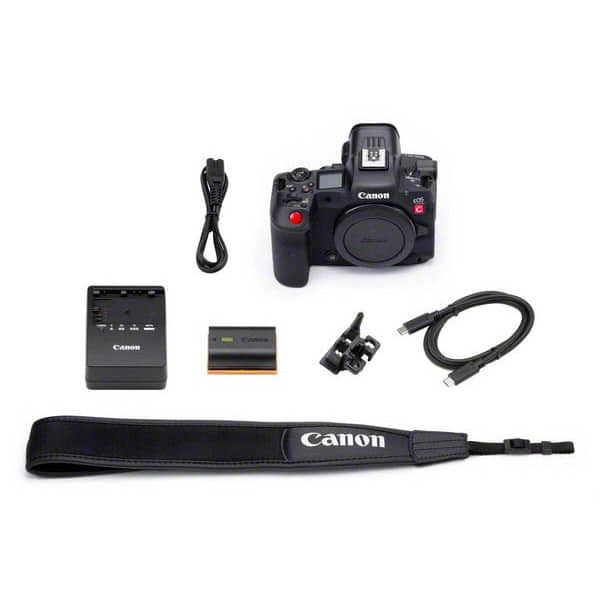

Accessories Supplied Battery Pack LP-E6NH

Battery Charger LC-E6

Shoulder Strap

USB-C Cable

Cable Protector

AC Cable

Accessories Optional Canon Battery Pack LP-E6NH/LP-E6N//LP-E6

Canon Battery Charger LC-E6

Canon Battery Grip BG-R10

Canon DC Coupler DR-E6C

Canon AC Adapter CA-946

Canon USB Power Adapter PD-E1

Canon Wireless File Transmitter WFT-R10

Canon Interface Cable IFC-100U/IFC-400U

Canon Shoulder Strap SS-1200

Canon GPS Receiver GP-E2

Canon RF lenses, EF lenses, EF cinema lenses,

and accessories designed for these lenses

Canon Mount Adapter EF-EOS R

Canon Control Ring Mount Adapter EF-EOS R

Canon Drop-In Filter Mount Adapter EF-EOS R

(w/ drop-in variable ND filter A and circular

polarizing filter A)

Canon Mount Adapter EF-EOS R 0.71x

Canon Extender RF1.4x

Canon Extender RF2x

Canon Remote Controller RC-6

Canon Wireless Remote Controller BR-E1

Canon Remote Switch RS-80N3

Canon Timer Remote Controller TC-80N3

Canon Directional Stereo Microphone DM-E1 / DME1D

Canon Stereo Microphone DM-E100

Accessories Third Party TASCAM CA-XLR2d-C XLR Adapter



POWER SOURCE

Power Supply Battery LP-E6NH Battery Pack (Supplied) / LP-E6N and LP-E6

(Compatible)

Power Supply Mains USB-C Power Adapter PD-E1

DC Coupler DR-E6C

AC Adapter CA-946

Power Consumption 8K RAW 25P (10.5W)

8K MP4 25P (11.2W)

4K HEVC 50P (12.9W)

4K XF-AVC 50P (13.3W)

Recording Time With supplied LP-E6NH battery pack:

8K RAW 25P: 50 Mins

8K MP4 25P: 45 Mins

4K HEVC 50P: 40 Mins

4K XF-AVC 50P: 35 Mins

PHYSICAL SPECIFICATIONS

Dimensions Main Body Only approx. 142 x 101 x 111mm

Weight Body Only approx. 680g

Weight Accessories approx. 770g (LP-E6NH, CFexpress Card, SD Card)

Operating Temperature

Range

approx. 0 to 40 C, (85% relative humidity)

approx. -5 to 45 C, (60% relative humidity)

• Canon EOS R5C
• Courroie
• Batterie
• Chargeur de batterie
